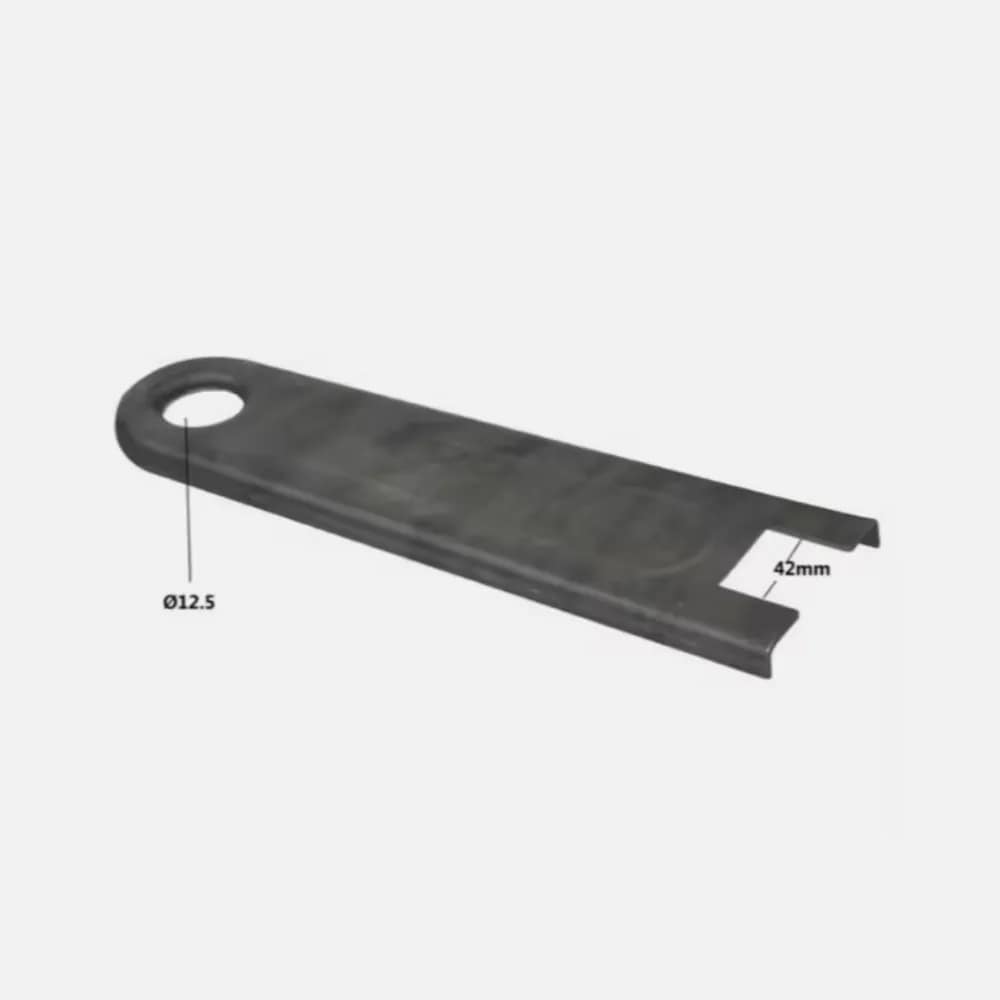

Steel channel (A) — YY-00019
Steel channel (A) is an iron component for the frame and leg-support mechanism of a manual three-function hospital bed. It is made by laser cutting and stamping. Confirm its channel section, hole pattern and thickness against the intended frame assembly before ordering.
Product specifications
| Parameter | Details |
| Model No. | YY-00019 |
| Material | Iron |
| Product Dimension | ø12.5*42*2.5 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.8KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Steel channel (A)
- Channel section and its connection with the leg-support structure.
- Hole pattern, installation orientation and moving-part clearance.
- Final thickness and dimensioned drawing for the required version.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Steel channel (A): ordering questions
Which dimensions are needed to specify steel channel (A)?
Provide the channel section, hole positions, thickness and connection drawing. Confirm the final thickness and connection geometry in the approved part drawing.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00019 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Steel channel (A) through the Chat button or email [email protected].
