Fixed sleeve of IV stand
OEM Wholesale Custom Metal Stamping Parts Fixed Frame Drop Fixture Tube For Hospital Bed

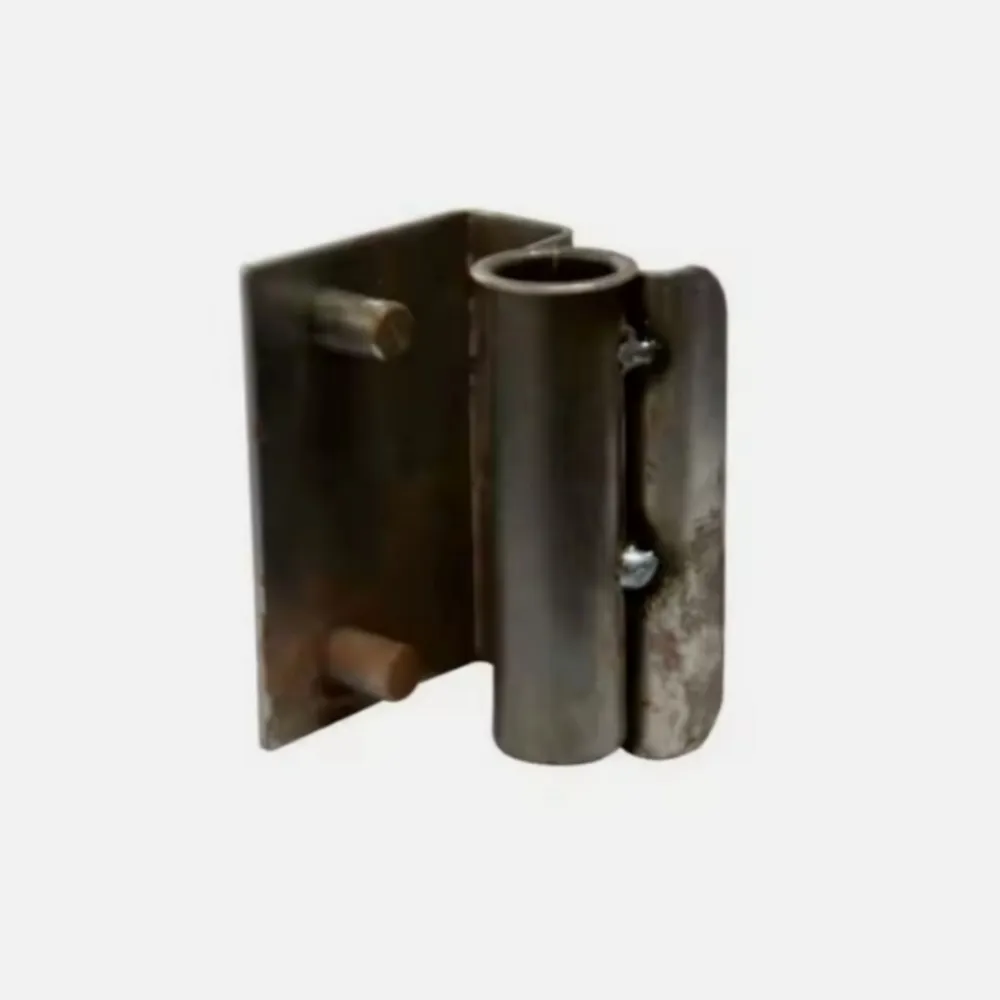

Fixed sleeve of IV stand — YY-00061
The fixed sleeve is a 3mm iron mounting component welded to a hospital bed to receive an IV stand. Match the sleeve opening and connection detail to the intended IV pole and the selected mounting location on the bed frame.
Product specifications
| Parameter | Details |
| Model No. | YY-00061 |
| Material | Iron |
| Product Dimension | Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Fixed sleeve of IV stand
- IV-pole insertion diameter and sleeve opening.
- Required insertion depth and retention arrangement.
- Frame welding position and clearance around the installed pole.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Fixed sleeve of IV stand: ordering questions
Will any IV stand fit this sleeve?
Fit depends on the pole's insertion dimensions and retaining arrangement. Provide the pole drawing and the required bed-frame mounting position before selecting the sleeve.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00061 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Fixed sleeve of IV stand through the Chat button or email [email protected].
