Swing arm(C)
Customized OEM Precision Sheet Hospital Bed Metal Parts Swing Arm (C) For Hospital Bed Frame
Swing arm (C) — YY-0001738

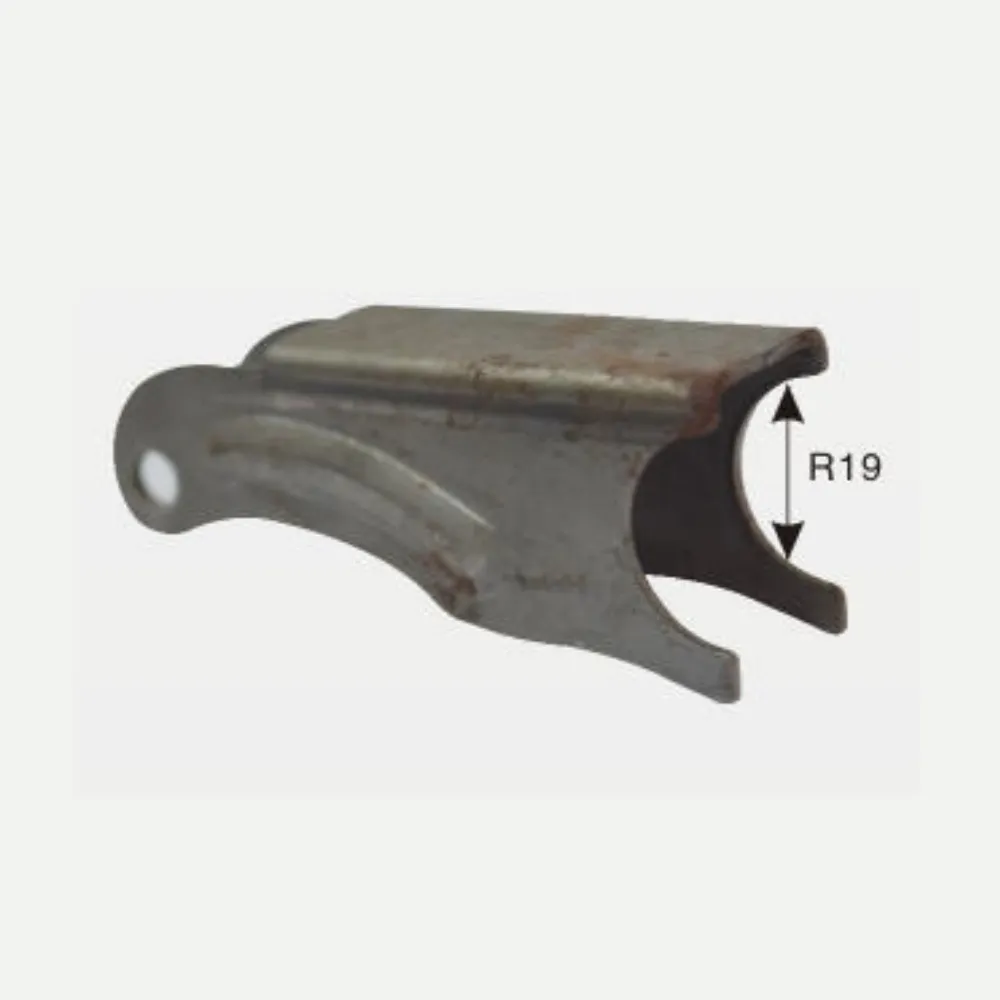

Swing arm (C) is a 3mm iron hospital bed linkage component connecting the bed panel and frame to assist panel raising and lowering. Confirm the profile and joint dimensions against the intended panel mechanism.
Product specifications
| Parameter | Details |
| Model No. | YY-0001738 |
| Material | Iron |
| Product Dimension | R19 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Swing arm (C)
- Arm radius or profile and mating connection geometry.
- Pivot positions and installation orientation.
- Travel and clearance through the panel adjustment range.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Swing arm (C): ordering questions
How is swing arm (C) distinguished from the other versions?
Compare the dimensioned profile and joint interfaces with the intended linkage. Confirm the required version and quantity from the complete assembly drawing.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-0001738 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Swing arm (C) through the Chat button or email [email protected].
