Transmission part for bed panel
Medical Accessory Parts Cnc Turning Milling Cnc Transmission Part For Bed Panel, Hospital Bed Panel
Transmission part for bed panel — YY-00010
This 3mm iron transmission part is welded to the back of a hospital bed panel and connects with other linkage accessories to assist panel raising and lowering. Its connection geometry must match both the panel and the bed adjustment mechanism.
Product specifications
| Parameter | Details |
| Model No. | YY-00010 |
| Material | Iron |

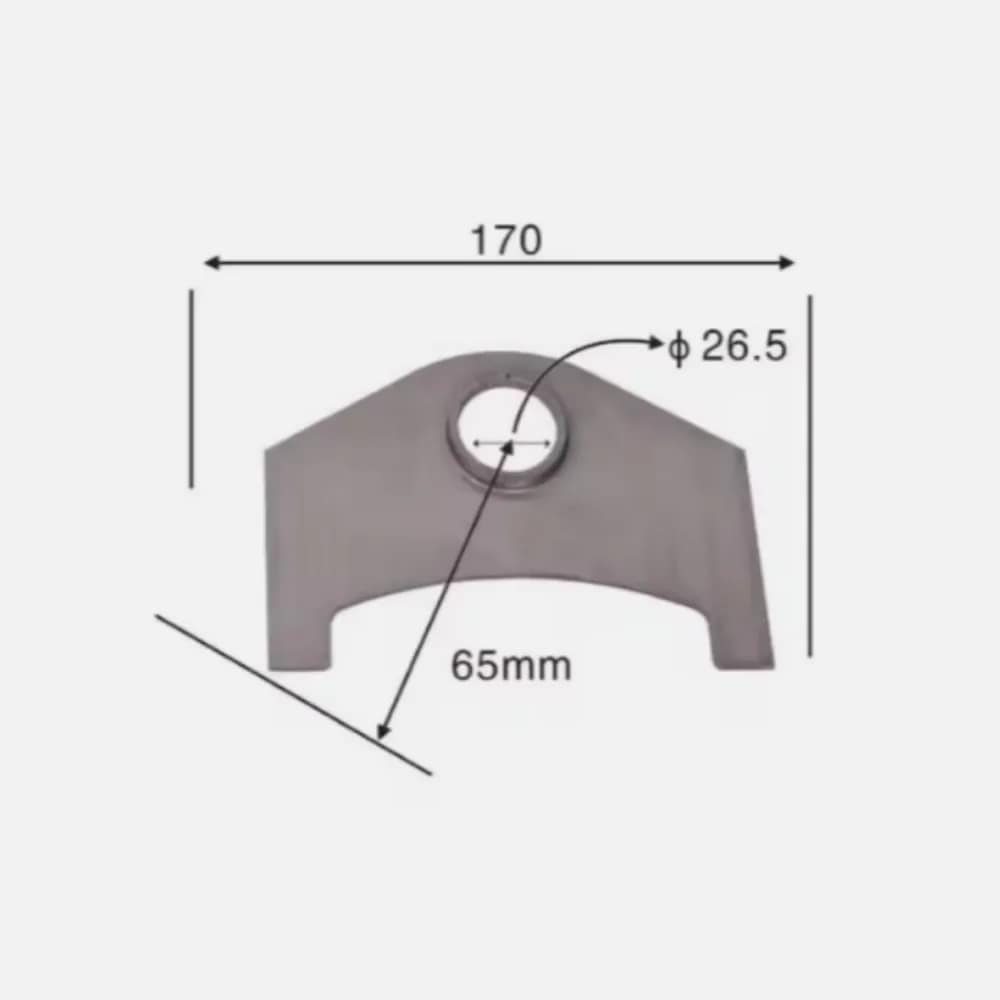

| Product Dimension | ø26.5*170*65 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.3KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Transmission part for bed panel
- Welding location and attachment geometry on the panel.
- Mating linkage connections and pivot dimensions.
- Installed orientation and clearance through the panel movement.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Transmission part for bed panel: ordering questions
Is this a complete panel adjustment mechanism?
The transmission part is a component of the panel linkage. Provide the complete linkage drawing to confirm the matching accessories and connection geometry for your bed panel.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00010 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Transmission part for bed panel through the Chat button or email [email protected].
