Fixed part (1) for bed panel — YY-00011
Fixed part (1) is a 3mm iron frame-side component for the bed-panel fixing arrangement. It is welded to the bed structure for use with the corresponding panel-side fixed part. Confirm both mating pieces and their positions on the assembly drawing.
Product specifications
| Parameter | Details |
| Model No. | YY-00011 |
| Material | Iron |

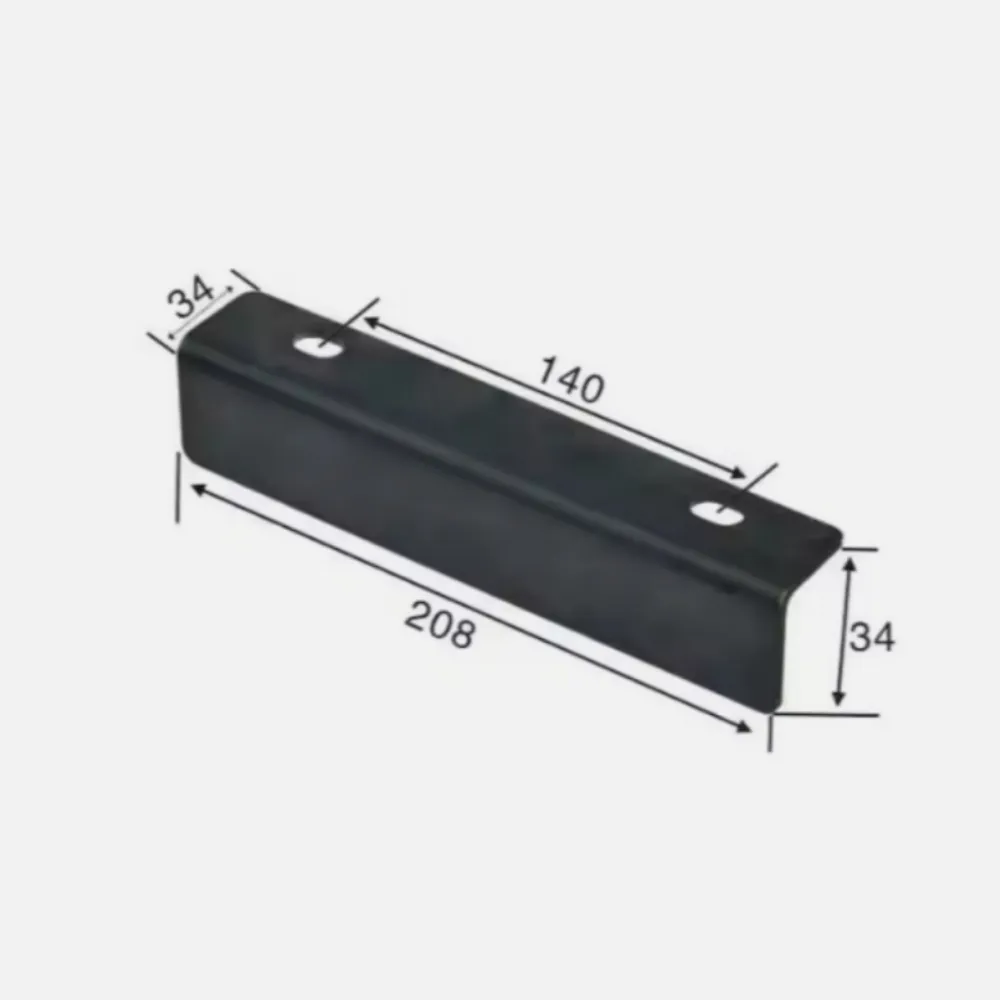

| Product Dimension | 208*34 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Fixed part (1) for bed panel
- Frame-side welding position and alignment with the panel-side component.
- Mating profiles, connection spacing and retaining method.
- Clearance for panel fitting, removal and movement.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Fixed part (1) for bed panel: ordering questions
How is this part matched to the bed panel?
Provide the frame and panel connection drawing, including the corresponding panel-side fixed part. Confirm both components as a matched joint rather than selecting only by the part number.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00011 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Fixed part (1) for bed panel through the Chat button or email [email protected].

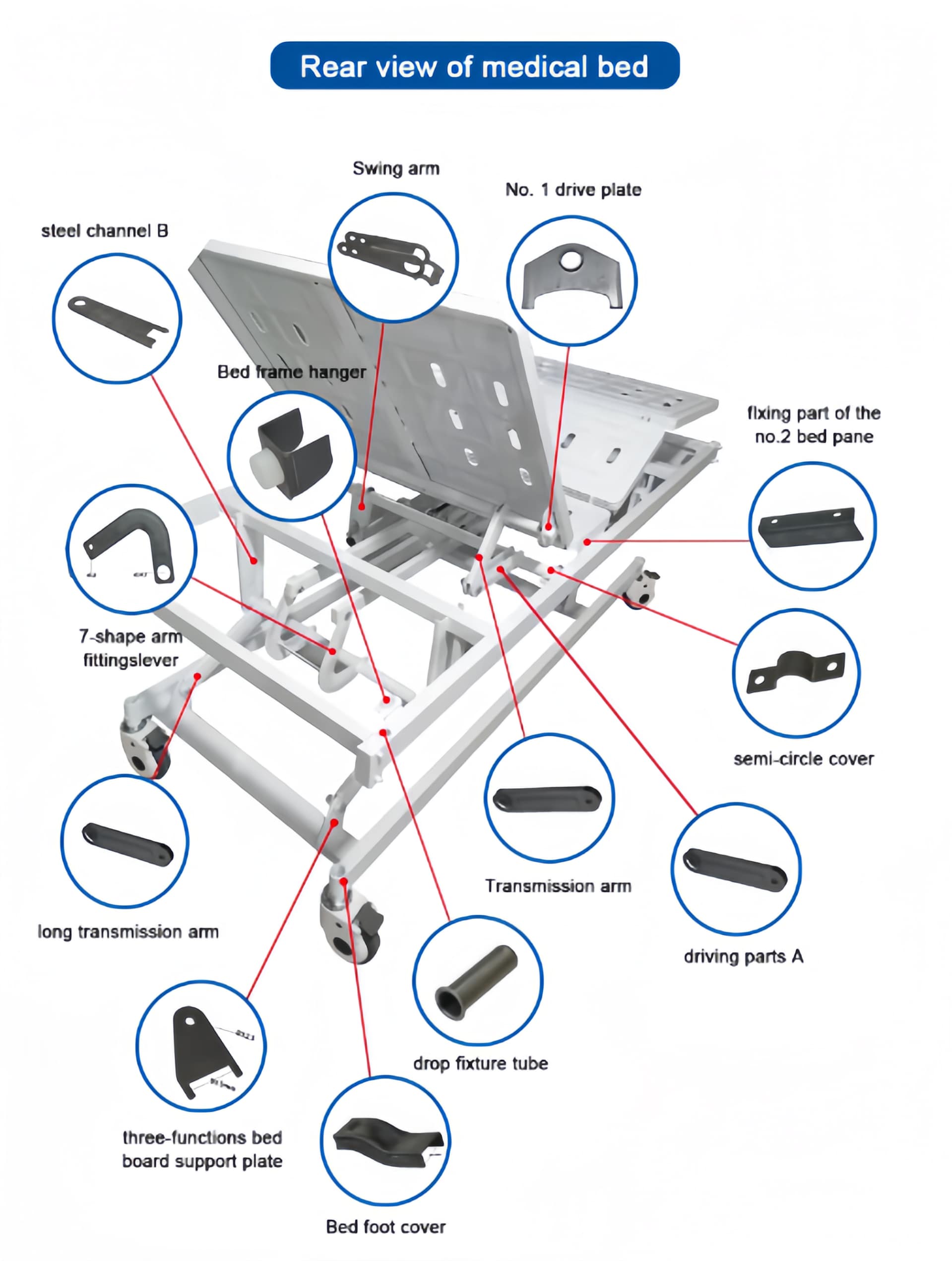

Browse related hospital bed metal parts and Stamped Hospital Bed Panels to identify the corresponding assembly category.
