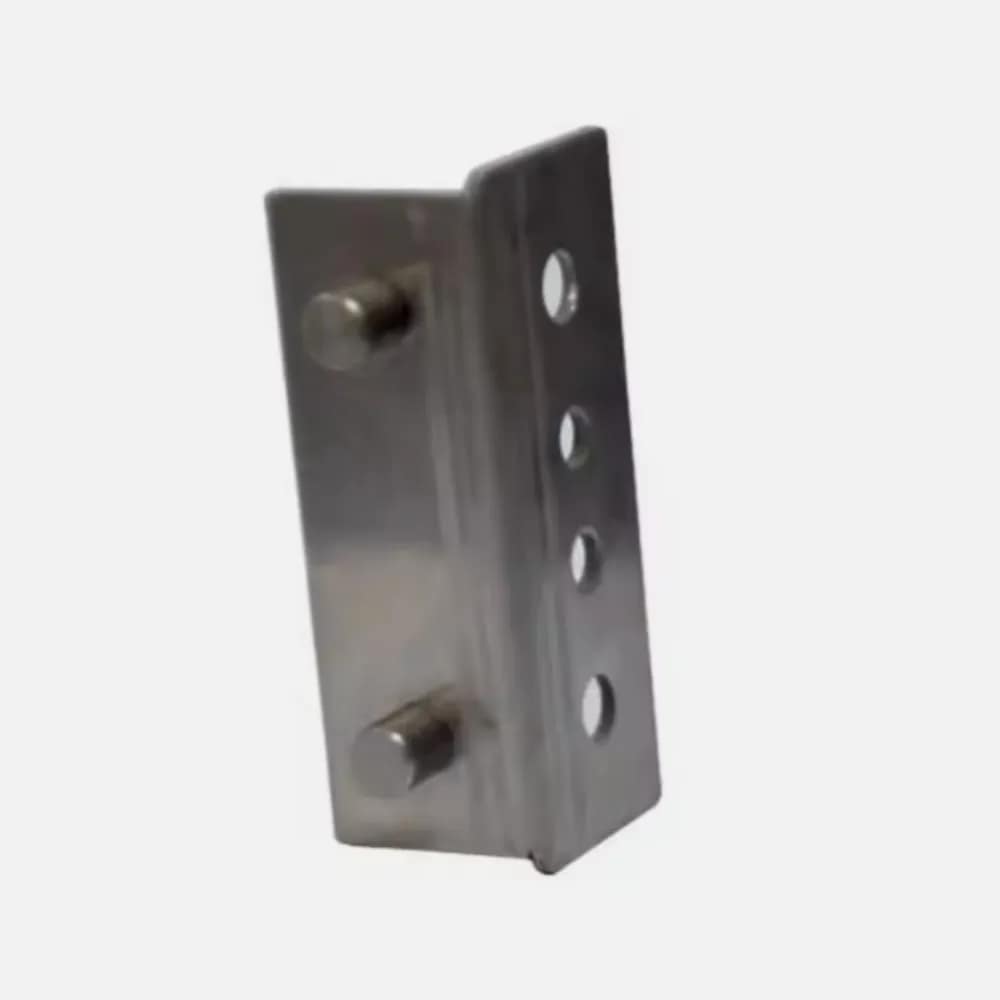

Hook seat of head and footboard — YY-00063
The head-and-footboard hook seat is a 3mm iron component welded at the main hospital bed frame to receive the board attachment. It forms the frame-side connection for mounting the headboard or footboard and must match the corresponding hook geometry.
Product specifications
| Parameter | Details |
| Model No. | YY-00063 |
| Material | Iron |
| Product Dimension | 90*60 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Hook seat of head and footboard
- Headboard or footboard hook profile and engagement dimensions.
- Seat location, orientation and welding detail on the main frame.
- Board installation and removal clearance.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Hook seat of head and footboard: ordering questions
How is the hook seat matched to a headboard or footboard?
Compare the seat drawing with the board-side hook profile, engagement depth and installation direction. Provide the board and frame drawings together when requesting confirmation.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00063 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Hook seat of head and footboard through the Chat button or email [email protected].
