Support of bed panel No.3
Hospital bed parts Metal Support of Bed Panel No.3 Use For Hospital Bed Panel
Support of bed panel No.3 — YY-00013

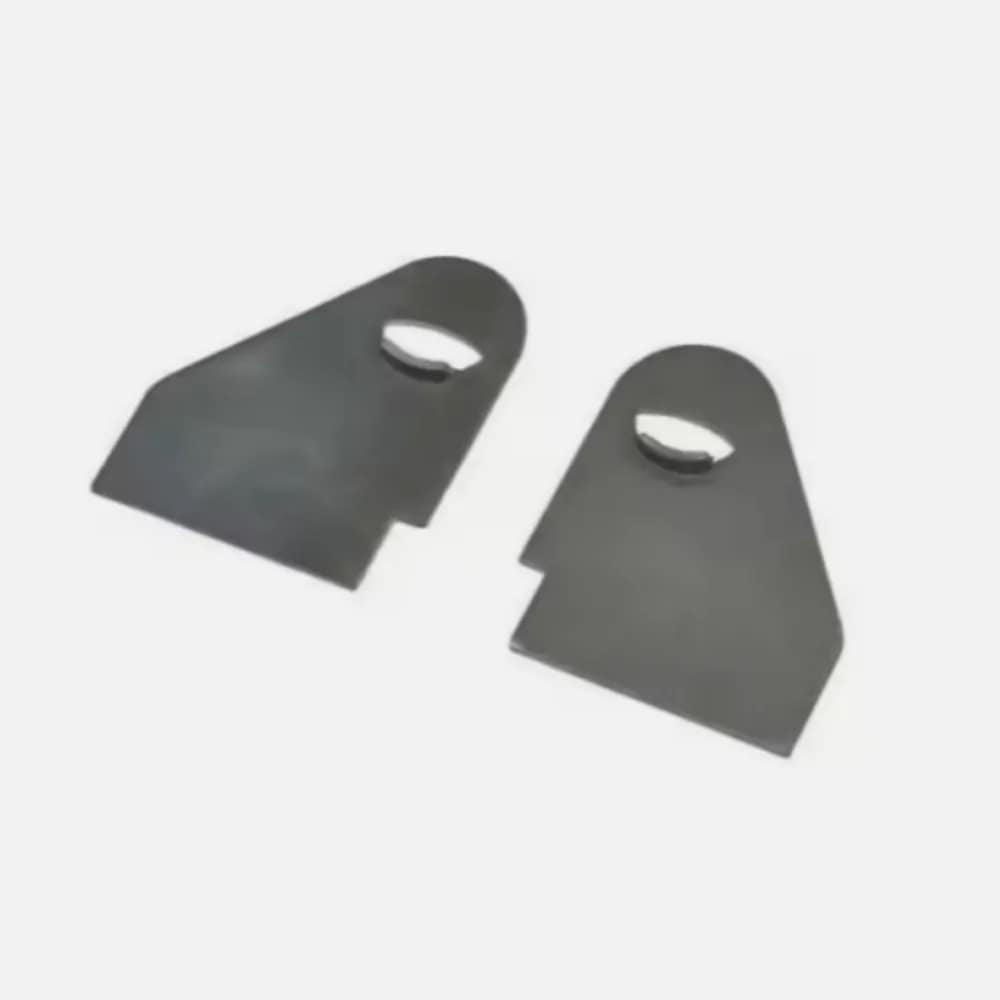

This 3mm iron support is welded to the back of a hospital bed panel and to a round tube, which connects to swing arm (B) within the panel adjustment mechanism. Match the support profile, tube interface and welding position to the assembly drawing.
Product specifications
| Parameter | Details |
| Model No. | YY-00013 |
| Material | Iron |
| Product Dimension | R16*97*74 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.3KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Support of bed panel No.3
- Round-tube profile and support contact geometry.
- Welding position on the panel and alignment with the swing arm.
- Panel travel and clearance around the tube and linkage.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Support of bed panel No.3: ordering questions
What other interfaces should be checked with this support?
Check the panel attachment, round-tube connection and associated swing-arm arrangement together. Provide the complete panel linkage drawing to confirm alignment before production.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00013 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Support of bed panel No.3 through the Chat button or email [email protected].
