Double-pieces connecting ear part of bed panel
Hospital Bed Stamped Metal Part Double-pieces Connecting Ear Part of Bed Panel

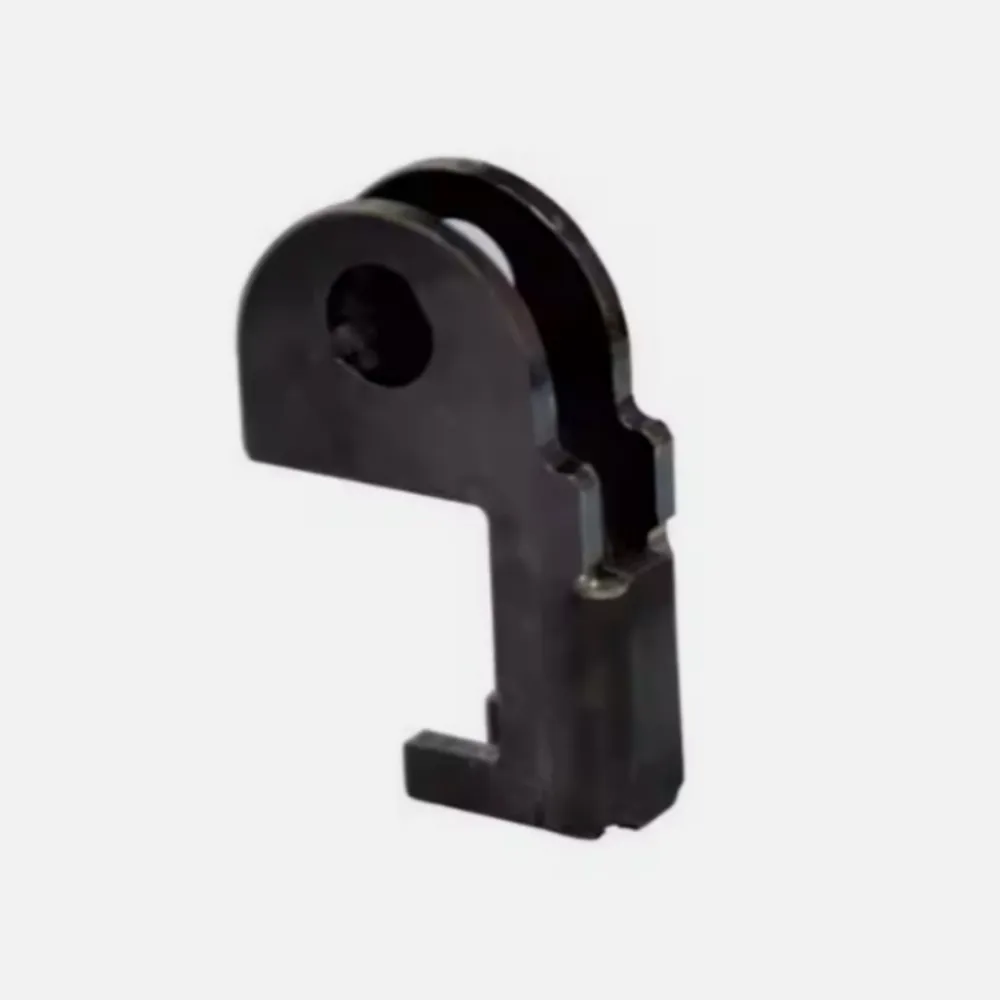

Double-pieces connecting ear part of bed panel — YY-00023A
This double-piece bed-panel connecting ear is a 3mm iron hospital bed component. The paired-ear arrangement must be matched to the bed-panel connection, fixing method and available space in the intended frame assembly.
Product specifications
| Parameter | Details |
| Model No. | YY-00023A |
| Material | Iron |
| Product Dimension | Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Double-pieces connecting ear part of bed panel
- Paired-ear spacing and the mating panel connection dimensions.
- Connection-hole pattern and fixing or pivot interface.
- Attachment position and clearance between the panel and frame.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Double-pieces connecting ear part of bed panel: ordering questions
What distinguishes the double-piece connecting-ear arrangement?
Specify the required paired-ear spacing and mating joint drawing. These details determine whether the part matches the panel assembly and cannot be established from the product name alone.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00023A and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Double-pieces connecting ear part of bed panel through the Chat button or email [email protected].
