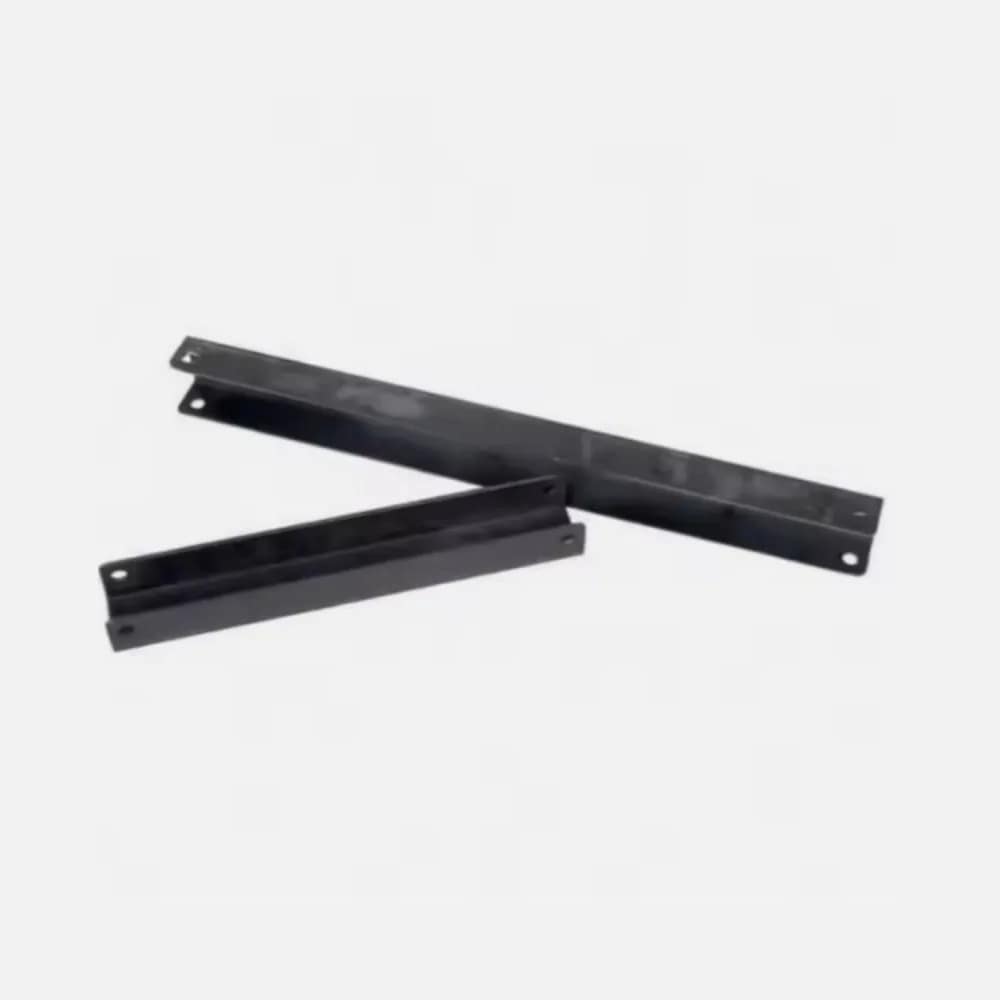

Sliding channel — YY-000054
The sliding channel is a 3mm iron component for a hospital bed assembly, with a customizable length range shown in the specification table. The mating slider and frame connection must be defined before choosing the channel dimensions.
Product specifications
| Parameter | Details |
| Model No. | YY-000054 |
| Material | Iron |
| Product Dimension | 100-600mm or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.8KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Sliding channel
- Channel section and the profile of the mating sliding component.
- Required travel, overall length and attachment-hole positions.
- Installation orientation, end connections and surrounding clearance.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Sliding channel: ordering questions
What information is needed to order a sliding channel?
Provide the channel-section drawing, required length, mating slider profile and attachment details. State the required movement range so the proposed channel can be checked against the assembly.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-000054 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Sliding channel through the Chat button or email [email protected].
