Transmission part(B)
Customized OEM Precision Sheet Metal Accessories Transmission Part(B) For Hospital Bed Frame
Transmission part (B) — YY-00022
Transmission part (B) is a 3mm iron linkage component connecting a hospital bed panel with the bed frame during panel raising and lowering. Confirm the required version using the linkage drawing and mating pivot interfaces.
Product specifications
| Parameter | Details |
| Model No. | YY-00022 |
| Material | Iron |

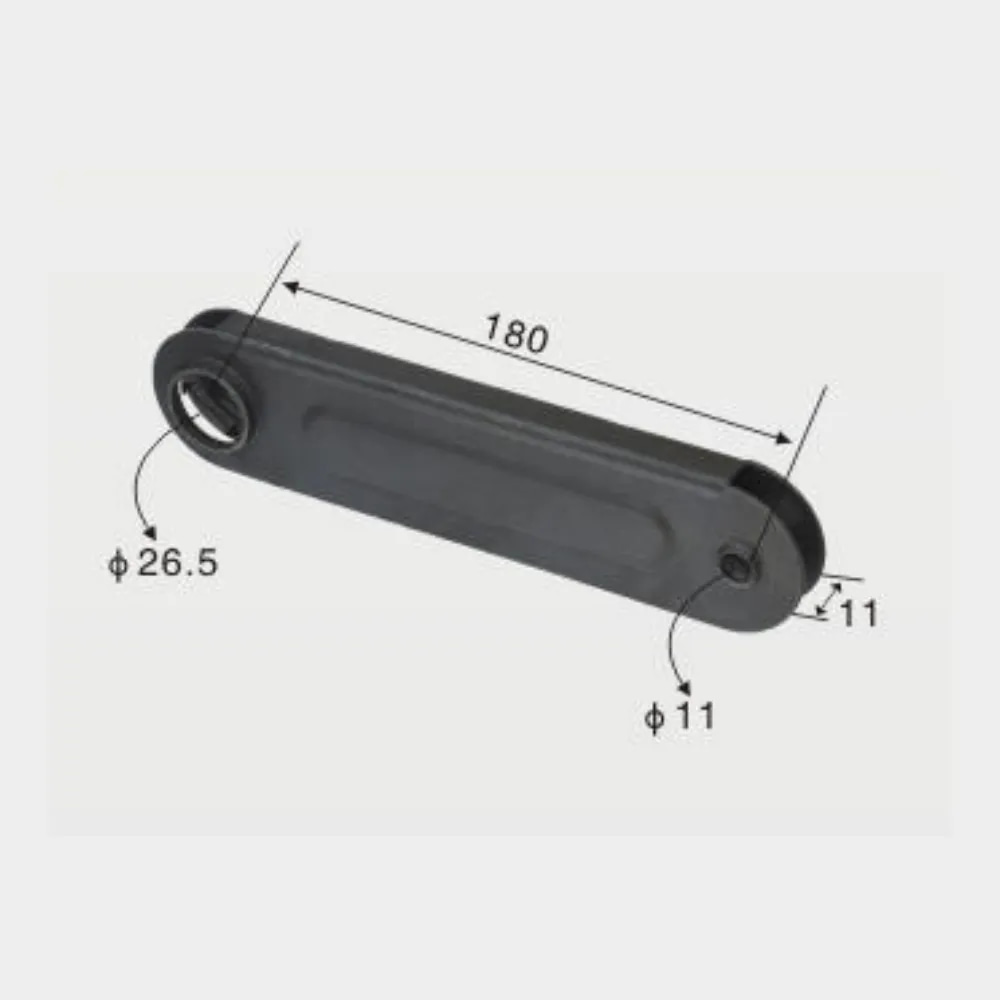

| Product Dimension | Ø26.5*ø11*180 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.8KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Transmission part (B)
- Pivot-hole dimensions and connection spacing.
- Arm profile and the mating panel/frame brackets.
- Installed orientation and clearance during panel adjustment.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Transmission part (B): ordering questions
Can transmission part (B) replace part (A)?
Compare the dimensions and pivot interfaces of the versions before substitution. Use the bed's assembly drawing to confirm the correct component and required quantity.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00022 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Transmission part (B) through the Chat button or email [email protected].
