Swing arm (B) — YY-00017

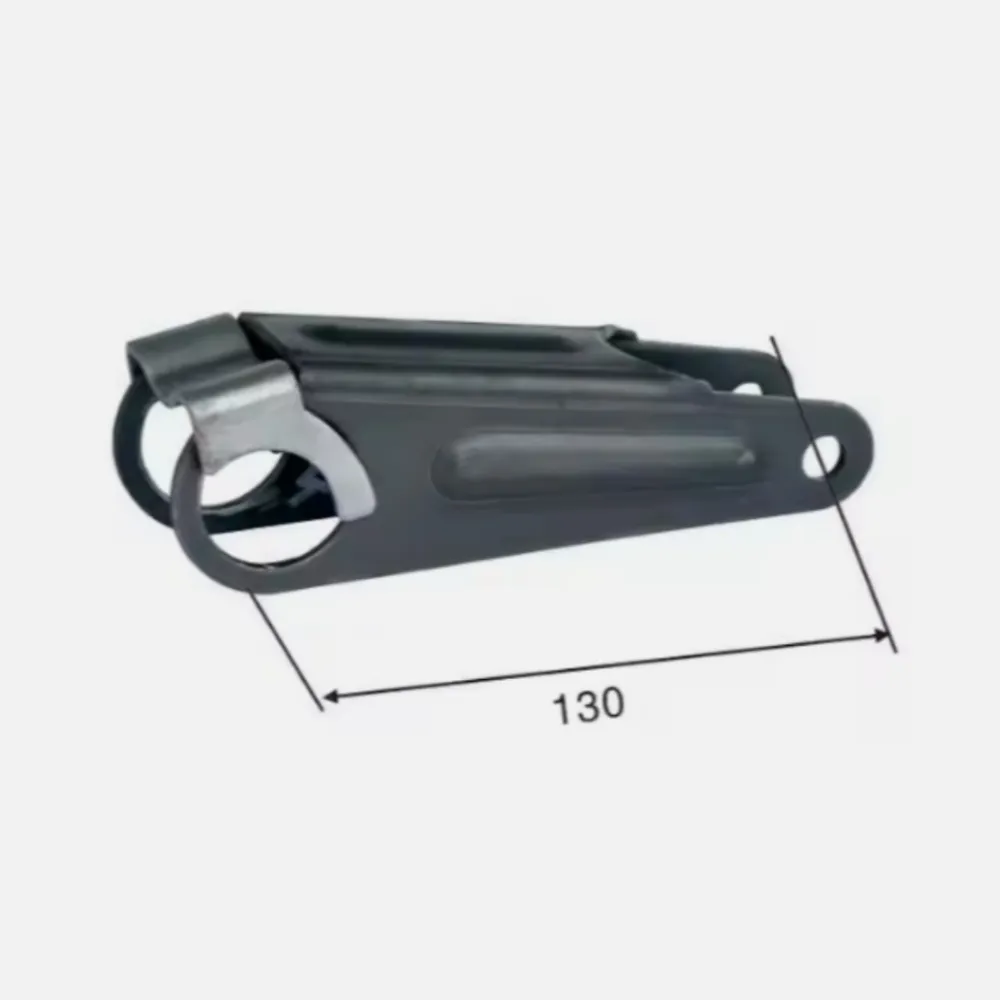

Swing arm (B) is a 3mm iron component used between the hospital bed panel and frame during panel raising and lowering. Specify the arm using its pivot interfaces and the intended linkage geometry.
Product specifications
| Parameter | Details |
| Model No. | YY-00017 |
| Material | Iron |
| Product Dimension | ∅34*130 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Swing arm (B)
- Arm profile, pivot connection dimensions and spacing.
- Mating panel/frame bracket geometry.
- Installed direction and movement clearance.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Swing arm (B): ordering questions
What should be checked when replacing swing arm (B)?
Compare the existing part or drawing with the proposed arm's connection dimensions, profile and installation direction. Confirm the match within the complete panel mechanism.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00017 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Swing arm (B) through the Chat button or email [email protected].
