Fixed part (2) for bed panel No.2
Bed Panel Fixing Part Metal Accessories Hardware Fixed part (2) for bed panel No.2 For Hospital Bed Panel
Fixed part (2) for bed panel No.2 — YY-00012

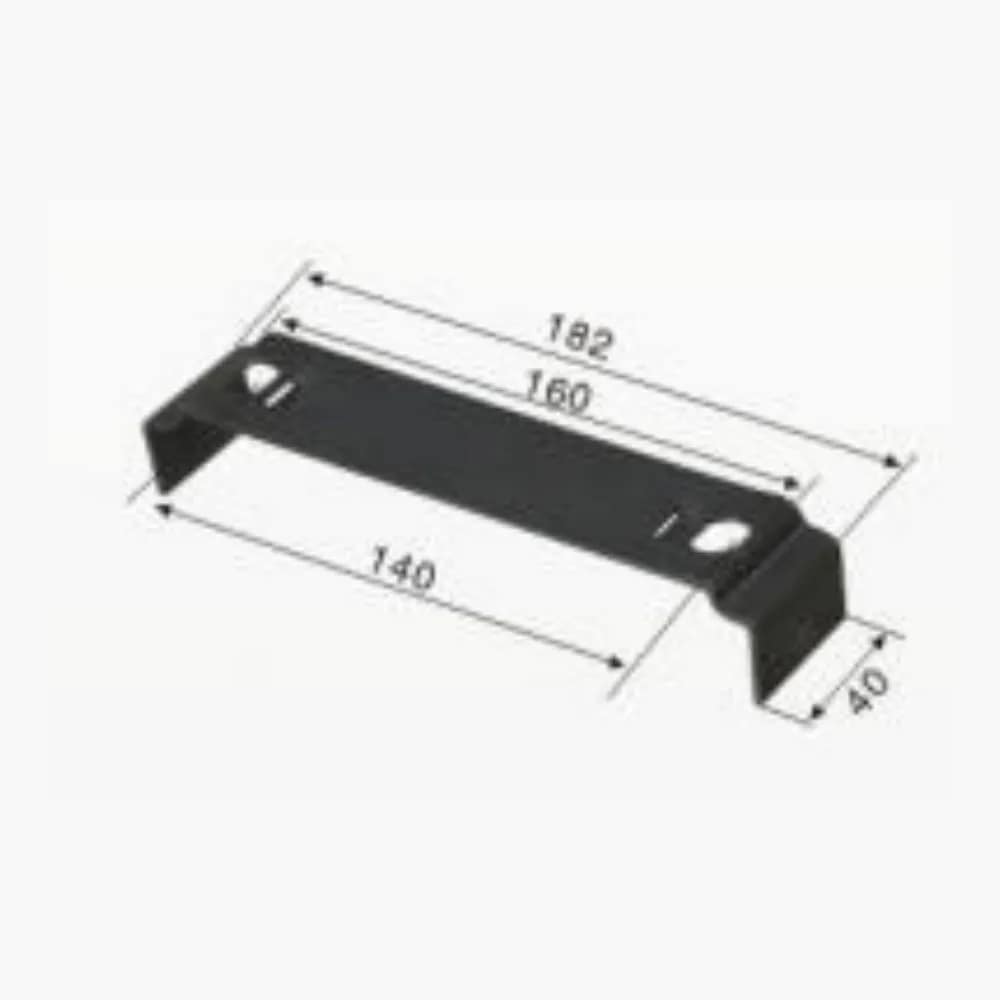

Fixed part (2) is a 3mm iron component for the stamped seat-section bed panel. It is welded to the back of the panel for use with the corresponding frame-side fixed part. This arrangement connects the panel without welding the panel directly to the bed frame.
Product specifications
| Parameter | Details |
| Model No. | YY-00012 |
| Material | Iron |
| Product Dimension | 140*40 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Fixed part (2) for bed panel No.2
- Panel-side welding location and mating frame-side fixed-part geometry.
- Connection spacing and alignment across the panel.
- Panel installation, removal and adjustment clearance.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Fixed part (2) for bed panel No.2: ordering questions
What should be ordered with this panel-side fixed part?
Confirm the matching frame-side fixed part and the joint drawing. The panel-side and frame-side pieces must be checked together before approving the connection.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00012 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Fixed part (2) for bed panel No.2 through the Chat button or email [email protected].
