Swing arm (A) — YY-00016
Swing arm (A) is a 3mm iron linkage component connecting the hospital bed panel and frame during panel adjustment. Its pivot positions and profile must correspond to the mating brackets in the intended bed assembly.
Product specifications
| Parameter | Details |
| Model No. | YY-00016 |
| Material | Iron |

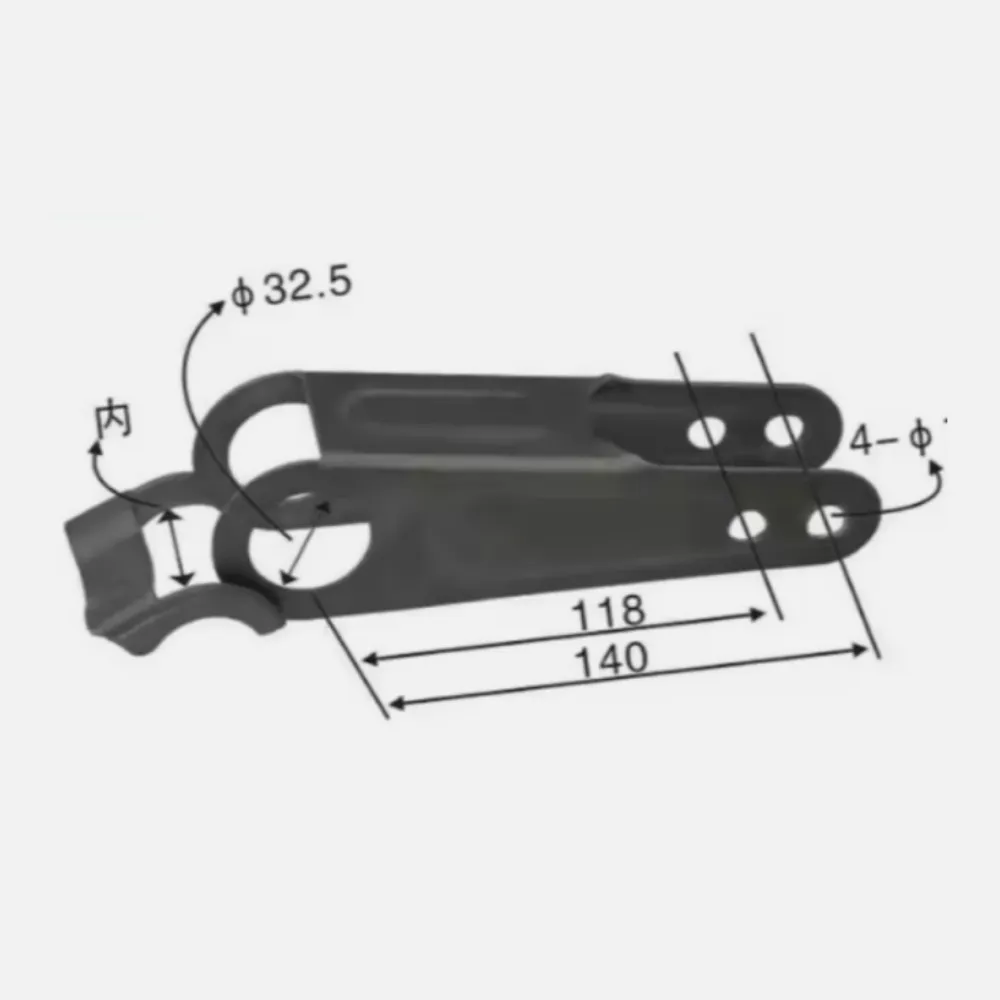

| Product Dimension | ø32.5*ø12.5*140or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Swing arm (A)
- Pivot connection dimensions and arm-center spacing.
- Arm profile and mating bracket geometry.
- Installed orientation and clearance during adjustment.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Swing arm (A): ordering questions
Can the swing arm be selected from its overall size alone?
Compare the pivot interfaces and installed geometry as well as the overall size. Provide the bed linkage drawing or matching part details to confirm the required version.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00016 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Swing arm (A) through the Chat button or email [email protected].
