Transmission part(A)
Customized OEM Precision Sheet Hospital Bed Part Transmission Part(A) For Hospital Bed Frame
Transmission part (A) — YY-00021
Transmission part (A) is a 3mm iron component of the adjustment linkage between a hospital bed panel and its frame. Its pivot geometry and installed position must match the corresponding panel and frame connections.
Product specifications
| Parameter | Details |
| Model No. | YY-00021 |
| Material | Iron |

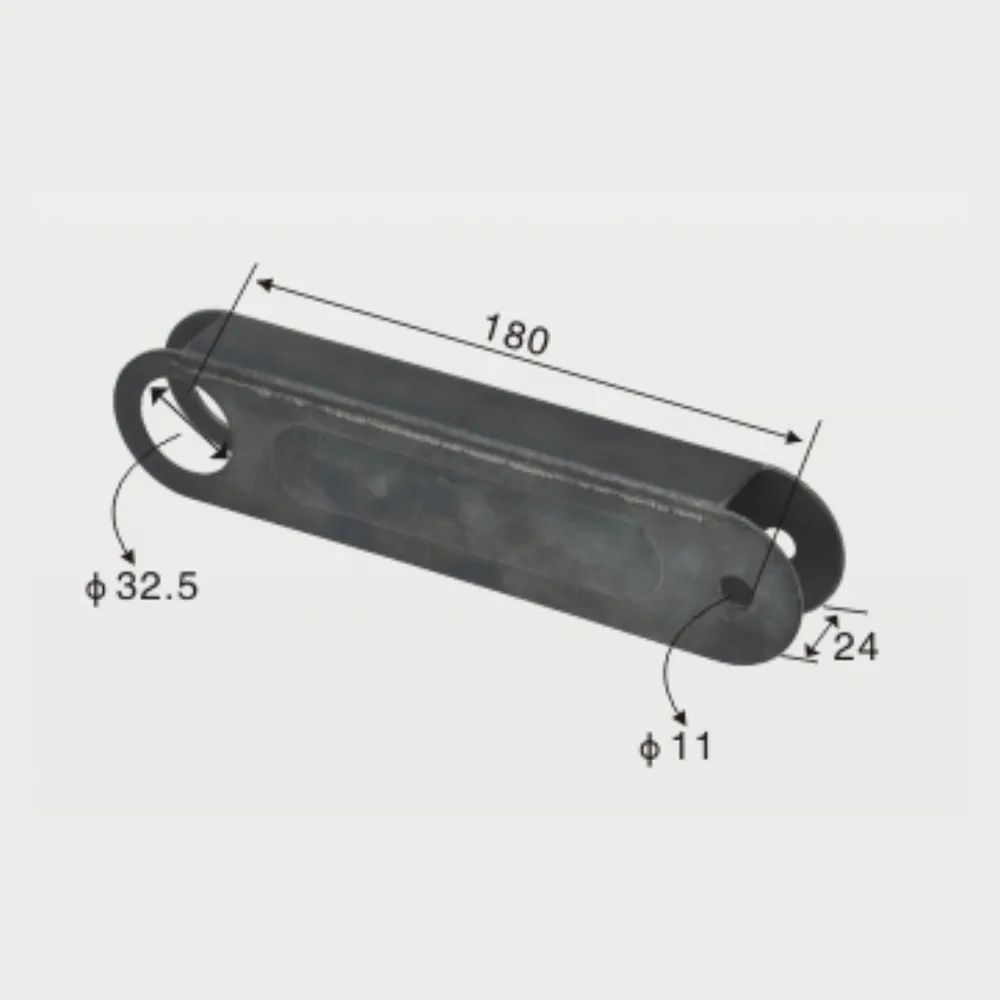

| Product Dimension | ø32.5*ø11*180 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.8KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Transmission part (A)
- Connection-hole dimensions and pivot-center positions.
- Arm profile, orientation and the mating brackets.
- Adjustment travel and clearance around the linkage.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Transmission part (A): ordering questions
What is needed to choose transmission part (A)?
Provide the panel and frame linkage drawing with the required connection dimensions. Confirm the version and installed position instead of selecting by a similar-looking arm.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00021 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Transmission part (A) through the Chat button or email [email protected].
