Connecting ear between bed panels — YY-00023

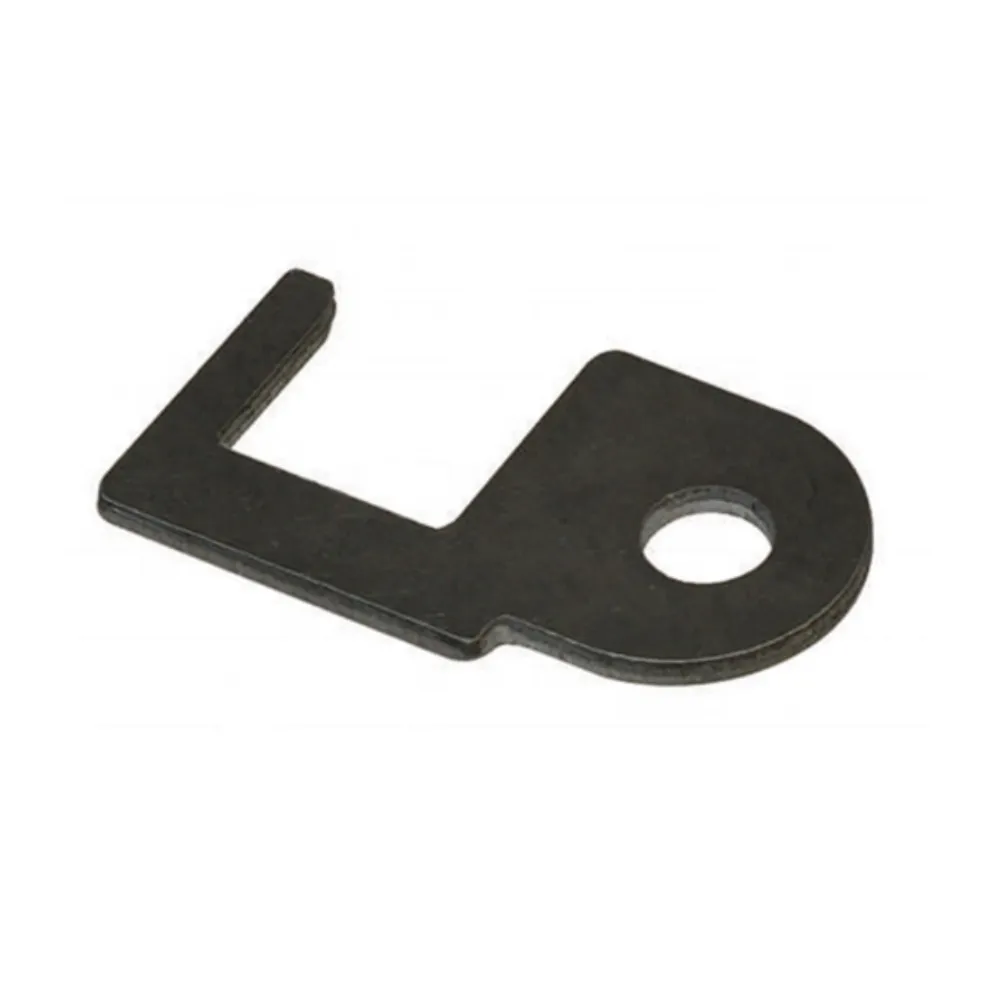

This iron connecting ear joins adjacent hospital bed panels. It is manufactured from 3mm material by laser cutting and stamping. Its hole and connection geometry must match the panel edges and the intended joint arrangement.
Product specifications
| Parameter | Details |
| Model No. | YY-00023 |
| Material | Iron |
| Product Dimension | ø10.5*21 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.8KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Connecting ear between bed panels
- Panel connection locations and connecting-hole dimensions.
- Ear profile and alignment between the adjacent panels.
- Joining method and clearance required by the panel assembly.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Connecting ear between bed panels: ordering questions
Will the connecting ear fit any bed panel?
Fit depends on the panel joint design. Provide the mating panel drawing, ear location and connection dimensions to confirm the appropriate component.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00023 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Connecting ear between bed panels through the Chat button or email [email protected].
