Comma-shape iron
Comma-shape Iron Hardware Products Precision Metal Stamping Parts For Hospital Bed
Comma-shape iron

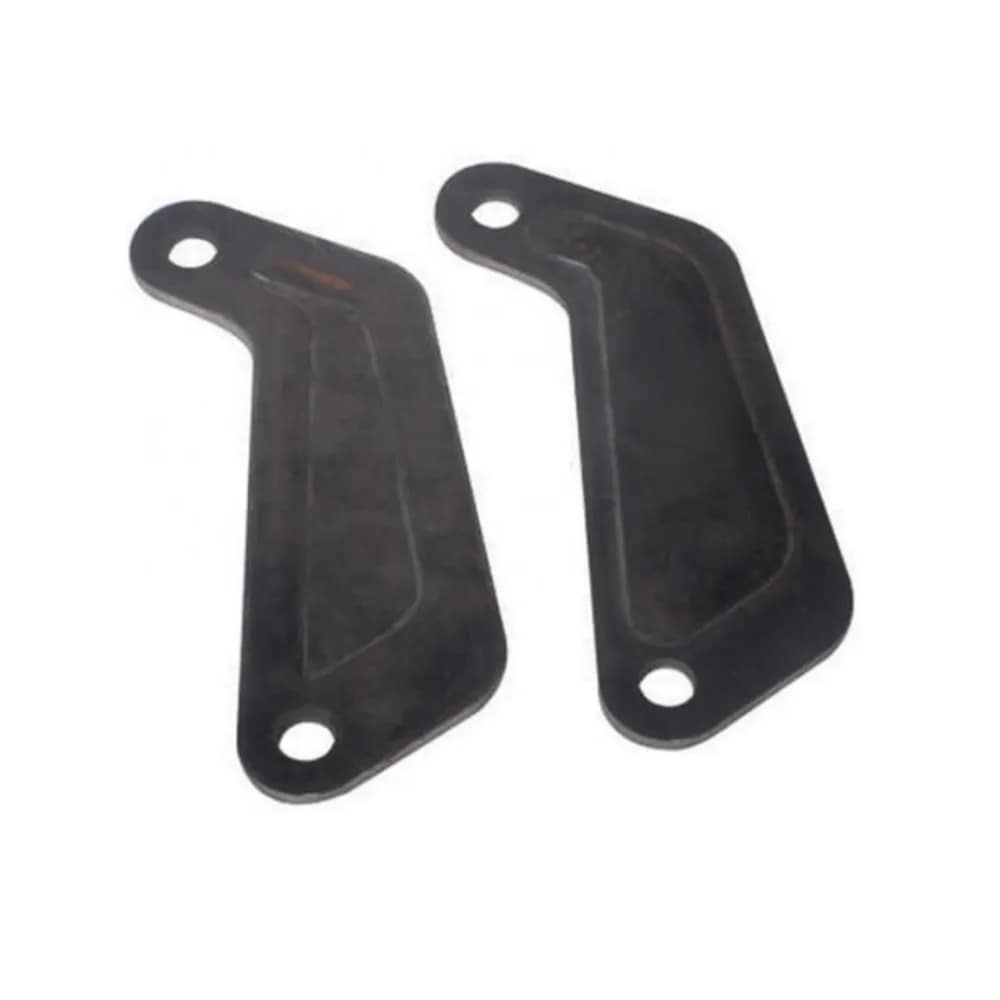

This comma-shaped iron component is used in the base mechanism of an electric five-function medical bed. It is formed by laser cutting and stamping and participates in the bed's lifting linkage. Confirm the part profile and pivot arrangement against the actual base assembly before procurement.
Product specifications
| Parameter | Details |
| Model No. | YY-00033 |
| Material | Iron |
| Product Dimension | ø12.5*146*5.0 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Comma-shape iron
- Comma-shaped profile, hole centers and pivot interfaces.
- Installed angle and clearance through the linkage movement.
- Final material thickness and dimensioned drawing for the ordered version.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Comma-shape iron: ordering questions
What drawing details are needed for the comma-shaped part?
Provide the profile, pivot-hole dimensions, hole spacing and material thickness. Confirm the final dimensions and thickness in an approved drawing before production.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify Comma-shape iron and confirm the model against the approved drawing and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Comma-shape iron through the Chat button or email [email protected].
