Claw of swing arm
OEM Manufacturer Stamped Metal Part Claw of Swing Arm For Hospital Bed
Claw of swing arm — YY-00056

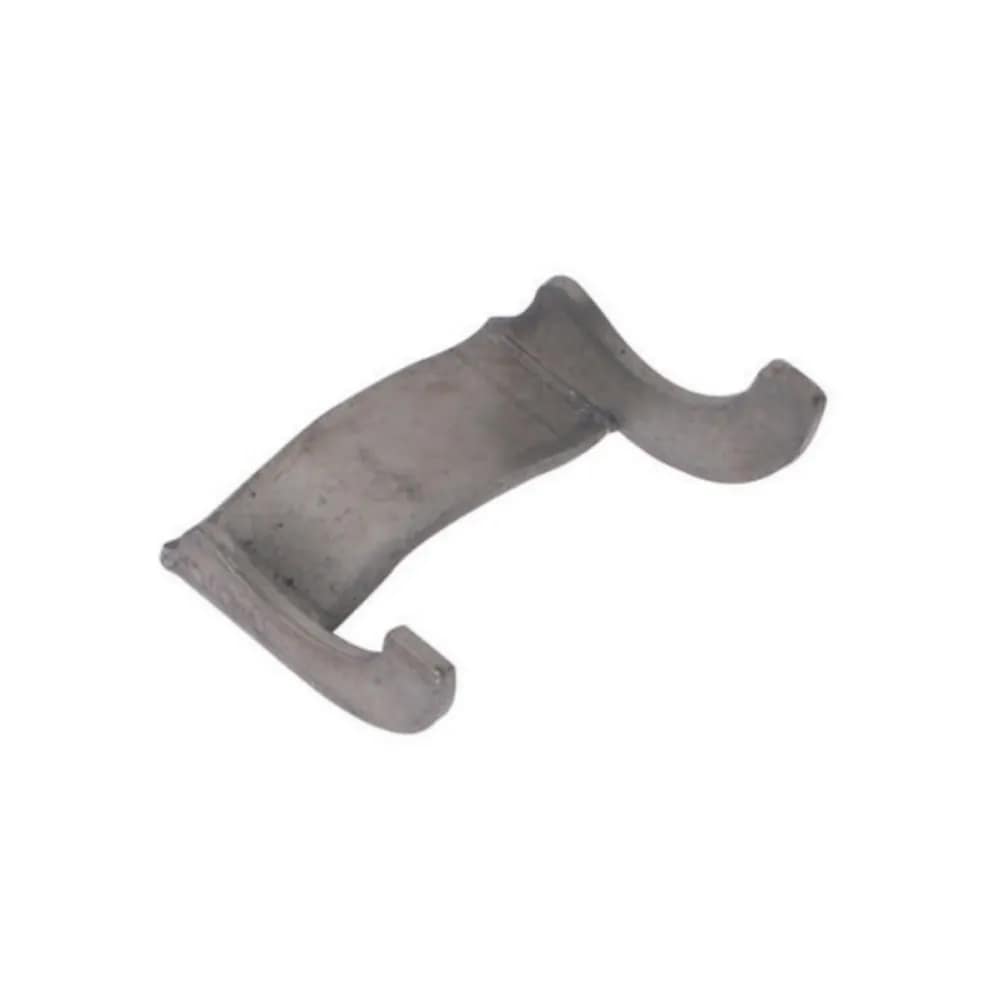

The swing-arm claw is a 3mm iron hardware component welded to a hospital bed swing arm to connect with the operating rod. Its profile and connection position must match the swing arm and the associated adjustment linkage.
Product specifications
| Parameter | Details |
| Model No. | YY-00056 |
| Material | Iron |
| Product Dimension | Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.8KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Claw of swing arm
- Claw profile and operating-rod attachment dimensions.
- Welding position and orientation on the swing arm.
- Linkage alignment and clearance through its movement.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Claw of swing arm: ordering questions
What is needed to specify the swing-arm claw?
Supply the swing-arm drawing and operating-rod connection detail. Confirm the claw profile, welding position and orientation as part of the assembled linkage.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00056 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Claw of swing arm through the Chat button or email [email protected].
