Central-locking pedal
Stamping Metal Fabrication Processing Central-locking Pedal Hardware Parts For Hospital Bed
Central-locking pedal — YY-00036

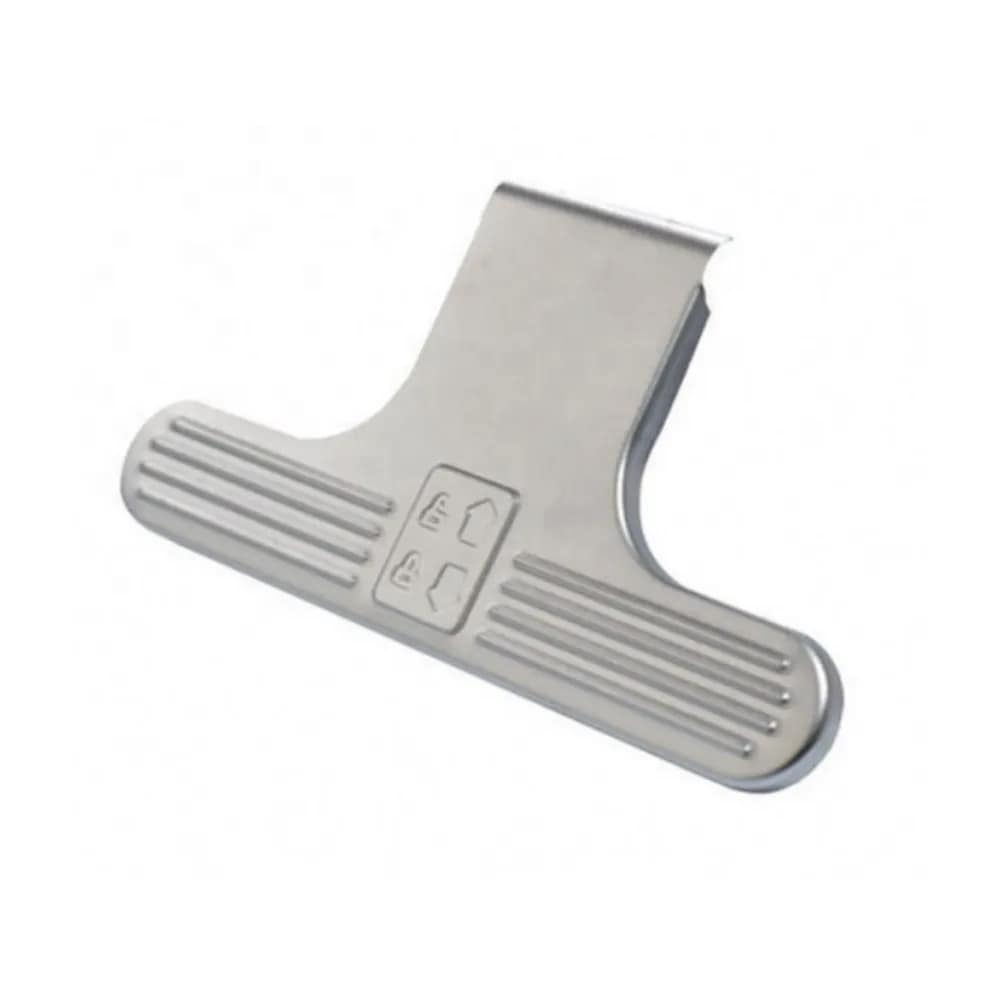

This central-locking pedal is made from 2mm aluminum alloy using laser cutting and stamping. Its surface includes lock and release status indicators. It is the operating pedal within a hospital bed central-locking caster system; the pedal must be matched to the connecting shaft and linkage arrangement.
Product specifications
| Parameter | Details |
| Model No. | YY-00036 |
| Material | Aluminum alloy |
| Product Dimension | Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.2KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Central-locking pedal
- Pedal-to-shaft interface and fixing method.
- Lock/release marking orientation relative to the actual linkage positions.
- Pedal movement, surrounding clearance and installation side.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Central-locking pedal: ordering questions
How should the pedal markings be specified?
Provide the operating direction and linkage positions for the intended caster system. Confirm that the lock and release indicators match the assembled mechanism before approving the pedal design.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00036 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Central-locking pedal through the Chat button or email [email protected].
Browse related hospital bed metal parts and Casters to identify the corresponding assembly category.
