“7” shape force arm
“7” Shape Force Arm Hardware Products Precision Metal Stamping Parts For Hospital Bed
7-shape force arm — YY-00030

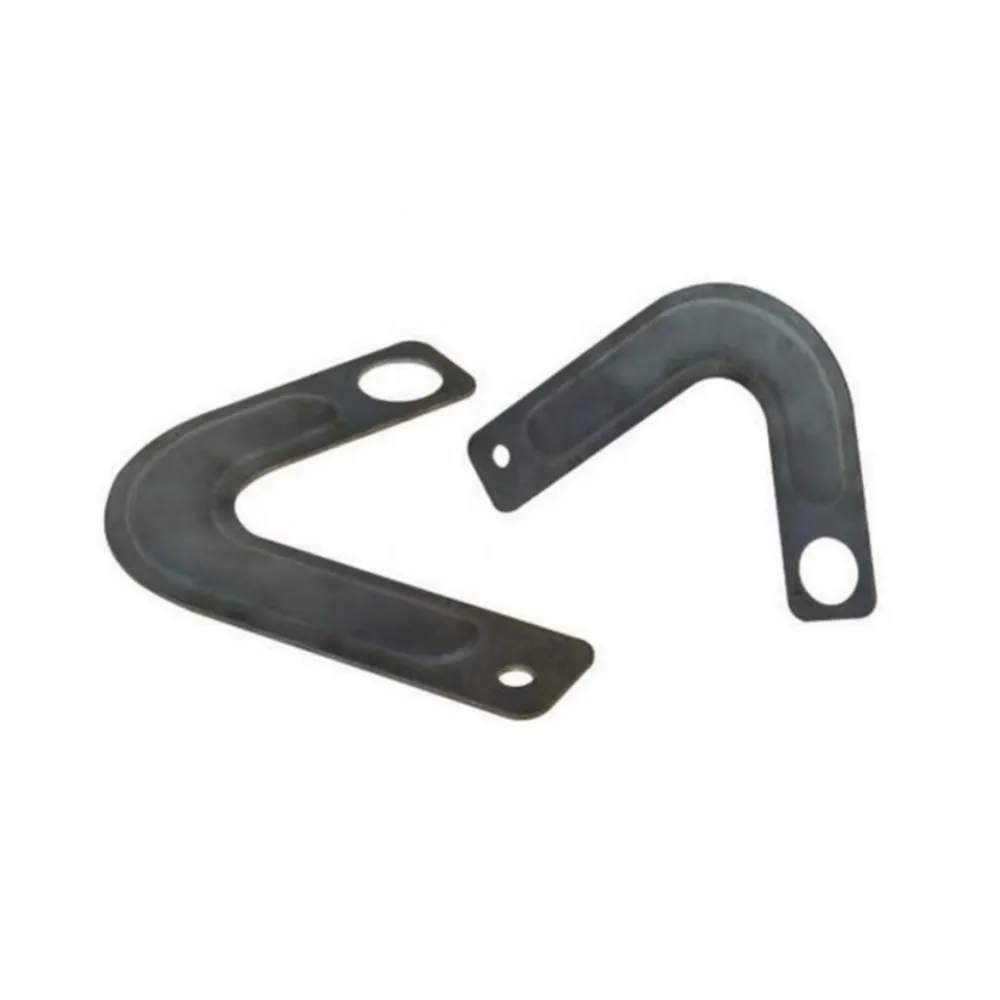

The 7-shape force arm is an iron linkage component manufactured from 3mm material by laser cutting and stamping. It is used in the adjustment mechanism of a manual three-function medical bed. It connects within the crank-operated linkage and must match the installed mechanism geometry.
Product specifications
| Parameter | Details |
| Model No. | YY-00030 |
| Material | Iron |
| Product Dimension | Ø34.5*Ø12 or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for 7-shape force arm
- Pivot-hole sizes, connection spacing and the angled arm profile.
- Crank linkage attachment and installation direction.
- Travel and clearance within the manual bed adjustment mechanism.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
7-shape force arm: ordering questions
Is the force arm supplied as a complete crank system?
The force arm is a component of the crank-operated linkage. Confirm the mating crank mechanism and required connecting parts separately using the assembly drawing.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00030 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for 7-shape force arm through the Chat button or email [email protected].
Browse related hospital bed metal parts and Crank System to identify the corresponding assembly category.
