Base support plate
Base Support Plate Hardware Products Precision Metal Stamping Parts For Hospital Bed
Base support plate — YY-00031

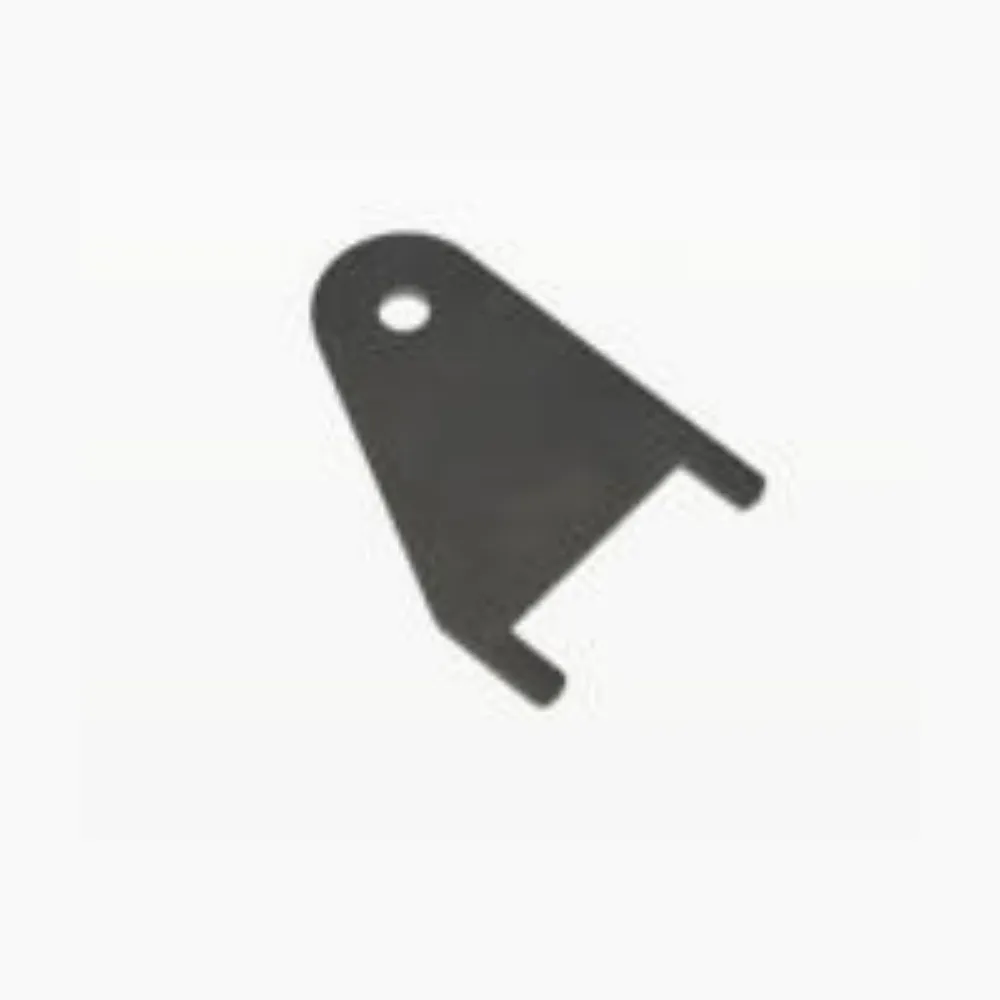

The base support plate is an iron component for the foot and lifting mechanism of an electric five-function hospital bed. It is manufactured from 3mm material by laser cutting and stamping. Its mounting arrangement is determined by the bed base and lifting-linkage design.
Product specifications
| Parameter | Details |
| Model No. | YY-00031 |
| Material | Iron |
| Product Dimension | ø12.5*60.5mm or Customizable |
| Color Options | Powder coating color according to customer requirements |
| MOQ | 100 pcs |
| Packaging | Wooden box or wooden frame, depending on the quantity of products |
| Gross Weight | About 0.5KG per unit |
| Lead Time | 10–15 working days |
| Warranty | 1 year Technical guidance |
Fit checks for Base support plate
- Base connection location, fixing holes and pivot interfaces.
- Plate profile and alignment with the lifting linkage.
- Material specification, welding requirements and required finish.
For a drawing-based quotation, send the required quantity and a dimensioned part or assembly drawing. Confirm the material grade, tolerances, surface finish and mating interfaces for the ordered version.
Base support plate: ordering questions
What determines compatibility with an electric bed base?
Compare the base connection drawing, pivot positions and plate profile. Provide the bed-base assembly detail rather than relying only on the component name.
What minimum quantity and lead time are listed?
The current specification table lists an MOQ of 100 pcs and a lead time of 10–15 working days. Confirm these terms for the required drawing, finish and quantity in the quotation.
What information should accompany a replacement enquiry?
Identify YY-00031 and include the existing component’s dimensions or drawing, its installation position and details of the mating parts. A photograph can help identify the version, but does not replace the fit dimensions.
Product documentation
For your procurement file, request the current document copies and confirm their scope against the ordered model.
Request a component quotation
Send the drawing, quantity and required finish for Base support plate through the Chat button or email [email protected].
