Foldable and portable manual wheelchair
Simple Medical Equipment Folding Manual Steel Rehabilitation Therapy Supplies Wheelchair for Sale
1. The frame is welded from high-strength A3 steel and spray-coated for enhanced rust resistance, safety, and durability.
2. Backrest: The angle is designed to perfectly match the physiologic curvature of the human waist, providing optimal support.
4. Armrests: The fixed armrests are padded with high-quality PVC for age-resistant performance.
5. The brake mechanism utilizes a toggle-type brake mechanism, which lowers the seat surface after application for convenient, quick, and safe use. It also includes a maintenance brake.
6. Seat/Back Cushions: Made of 400D Oxford fabric, the cushions are waterproof, easy to clean, soft, and smooth, featuring a built-in 600D canvas interlayer for high tensile strength.
7. The footrests are locked with an eccentric mechanism for height adjustment, accommodating different users. They also come with a calf strap.
8. Front Wheels: 8-inch (20cm) PVC swivel tires with high-strength plastic hubs. Rear wheels: 24-inch (60 cm) solid rubber rear wheels with excellent shock absorption, equipped with a handwheel mechanism (for direct hand-powered wheelchair operation).
9. Foldable design for easy portability and space-saving travel.

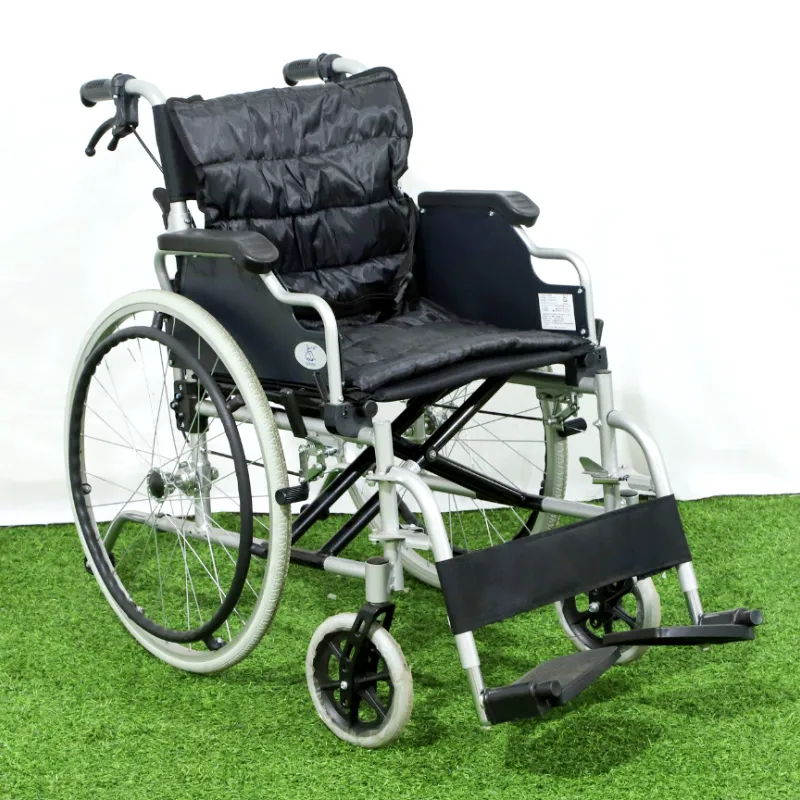

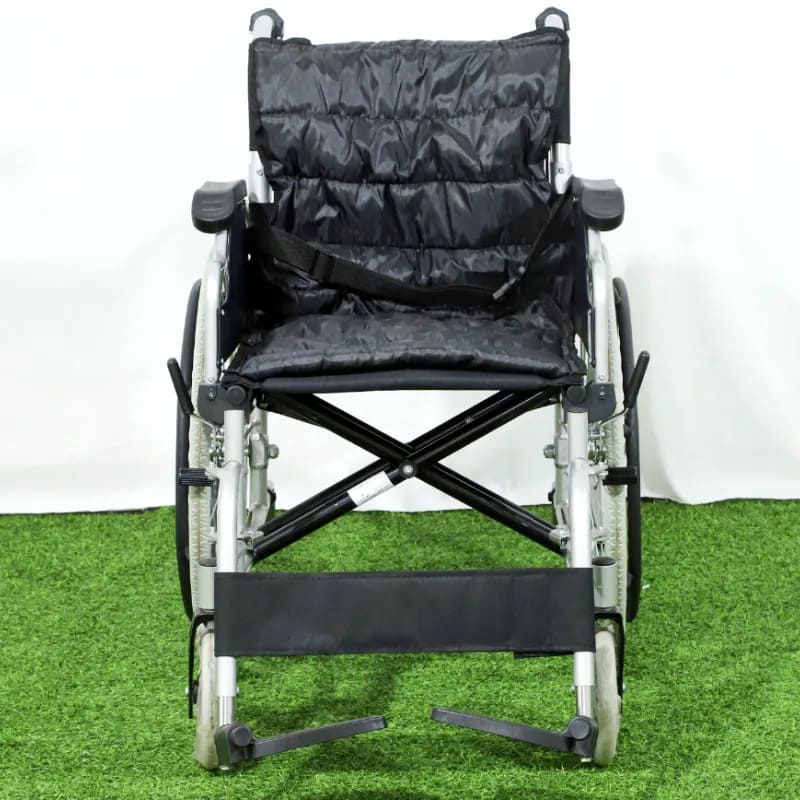

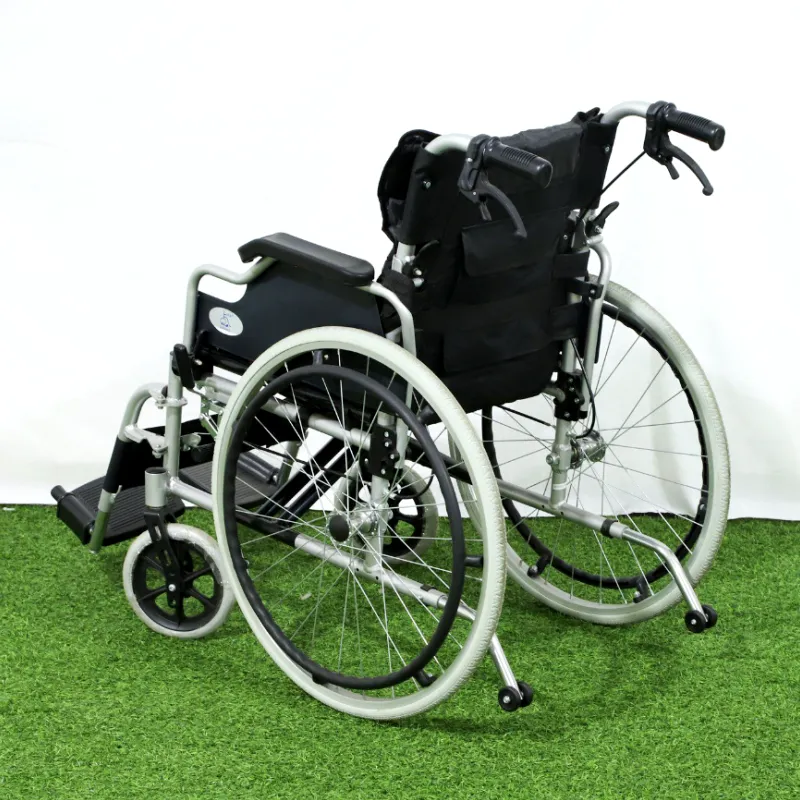

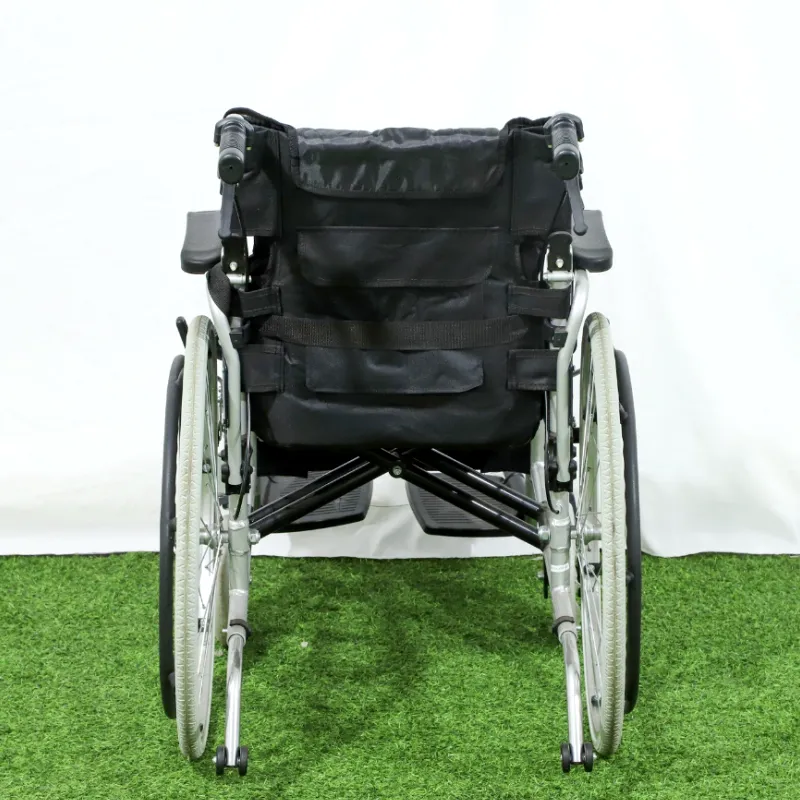

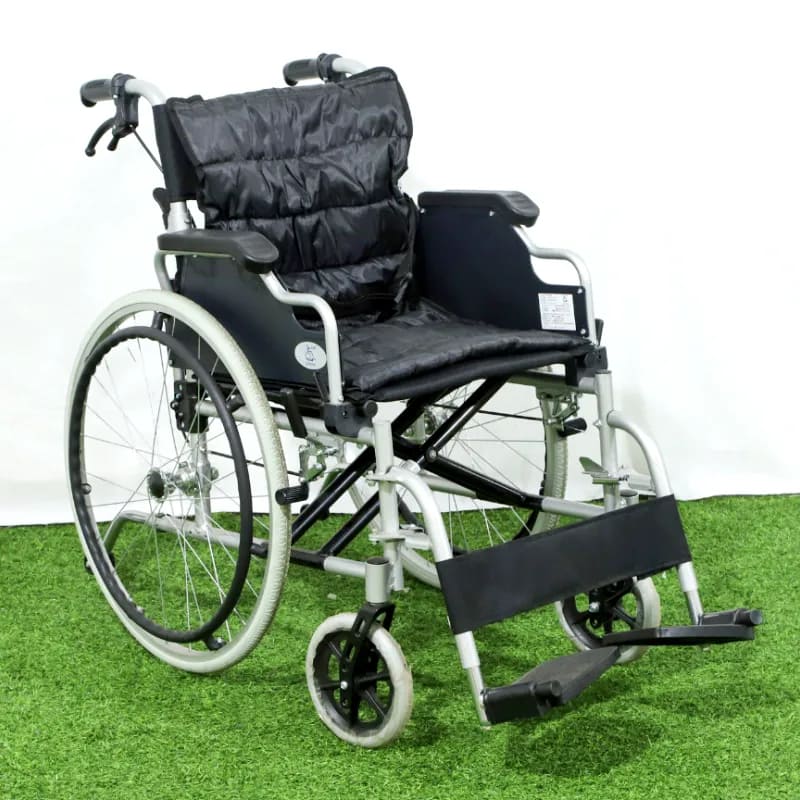

Manual Wheelchair | Foldable and Portable Manual Wheelchair –YY-951A-56
YY-951A-56 Manual Wheelchair is a durable, lightweight, foldable and easy to operate use for hospital beds, nursing homes, and patient care environments. The brake mechanism utilizes a toggle-type brake mechanism, it provides reliable functionality and user comfort. Custom sizes, colors, and OEM branding are available for bulk orders.
Product Specifications
| Parameter | Details |
| Model No. | YY-951A-56 |
| Material | Made of 400D Oxford fabric, featuring a built-in 600D canvas interlayer (waterproof, easy to clean, soft, and smooth) |
| Frame Material | high-strength A3 steel |
| Total Length | 109cm |
| Total Width | 65cm |
| Total Height | 86cm |
| Seat Width | 46cm |
| Seat Depth | 42cm |
| Seat Height from Ground | 50cm |
| Load Capacity | 125 KG |
| Fame Material/Tube Diameter*Thickness | Q195/22*1.2mm |
| Color Options | Black / Grey (OEM available) |
| MOQ | 50 pcs |
| Packaging | 1 unit/ctn, foam + export-grade carton |
| Net Weight | 19 KG per unit |
| Gross Weight | 20 KG per unit |
| Lead Time | 15–20 working days |
| Warranty | 1 year for mechanism and structure |
Selection and OEM Inquiry
The specification table lists overall dimensions of 109 x 65 x 86 cm and a 46 cm seat width.
For YY-951A-56 folding manual wheelchair, provide the following information so the offered configuration can be checked against your equipment and order:
- Seat width and depth, user requirements and doorway clearance.
- Required rear-wheel type, brakes, armrests and footrests.
- Folded dimensions and handling requirements for the intended transport arrangement.
Any requested dimensional, material, finish, color or packaging changes must be confirmed against the approved drawing and quotation before production.
Application and Compatibility
For manual wheelchair procurement and replacement planning in care and rehabilitation settings. Selection depends on the user's seating requirements, access routes and the confirmed chair configuration.
Factory and Certification Documents
Certification documents are available upon request. Request current copies and confirm the document holder, scope and applicability to the product and destination market.
Ordering Questions
Which seating and wheel configuration should I choose?
The specification table lists overall dimensions of 109 x 65 x 86 cm and a 46 cm seat width. Confirm the seat dimensions, brake arrangement, wheels, armrests and footrests for the intended user.
What should I check for access and handling?
Check doorway and route clearances and request the folded dimensions and handling instructions for the quoted configuration.
What MOQ and production schedule apply?
Refer to the MOQ and Lead Time entries in this product's specification table. Confirm the final quantity, any requested changes and the production schedule in the quotation for your order.
Can a sample or drawing review be arranged?
Ask whether a sample or drawing review is available for the selected configuration. Confirm the scope, cost, freight and approval process with sales before proceeding.
What should accompany a quotation request?
Include the model, selected options, drawing or mating dimensions, required quantity, destination and any documentation or packaging requirements. Identify which listed accessories you need included.
Related Products and Inquiry
Compare models in Manual Wheelchair. Email [email protected] with the technical information above to request a quotation.
