High Quality Foldable and portable manual wheelchair with handbrake
High Quality Medical Equipment Folding Manual Steel Rehabilitation Therapy Supplies Wheelchair With handbrake for Sale
1. The frame is welded from high-strength, special aluminum profiles with a diameter of 22 x 2mm and a painted finish.
2. Seat/Back Cushions: Sewn from flame-retardant Oxford fabric with a 600d canvas interlayer for high tensile strength. Equipped with a separate, breathable, non-slip sponge seat cushion.
3. Armrests: Retractable armrests with high-quality PU padding.
4. Detachable Footrests: European-style removable footrests with eccentric locking for easy height adjustment. The footrests are removable and rotatable, and come with a calf strap.
5. Double-support I-beam frame for high load-bearing strength.
6. Front Wheels: 8-inch PVC universal front wheels with high-strength plastic hubs and a high-strength metal fork. Rear Wheels: 24-inch PU-filled rear wheels.
7. Self-locking brakes with a toggle-type brake mechanism that lowers the seat surface when engaged.
8. The height of the anti-rollover footrest safety device can be adjusted at will, which greatly prevents the wheelchair from tipping over during exercise.

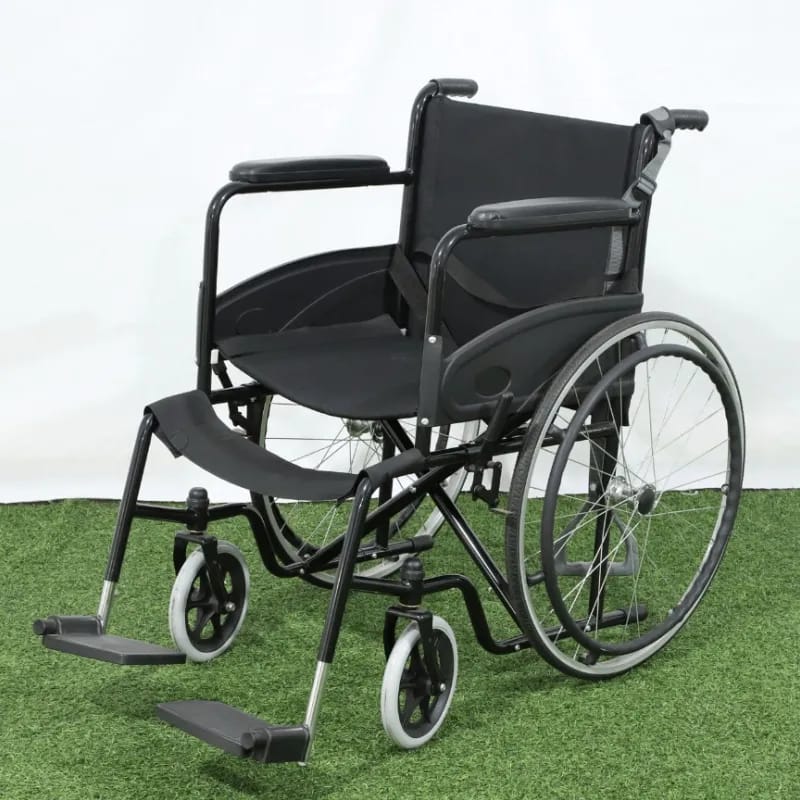

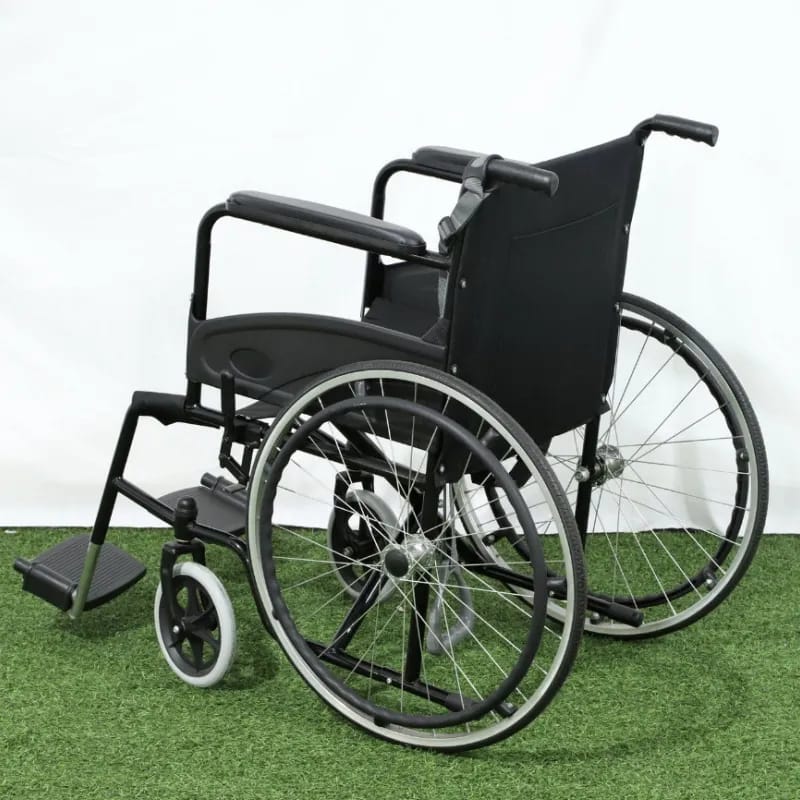

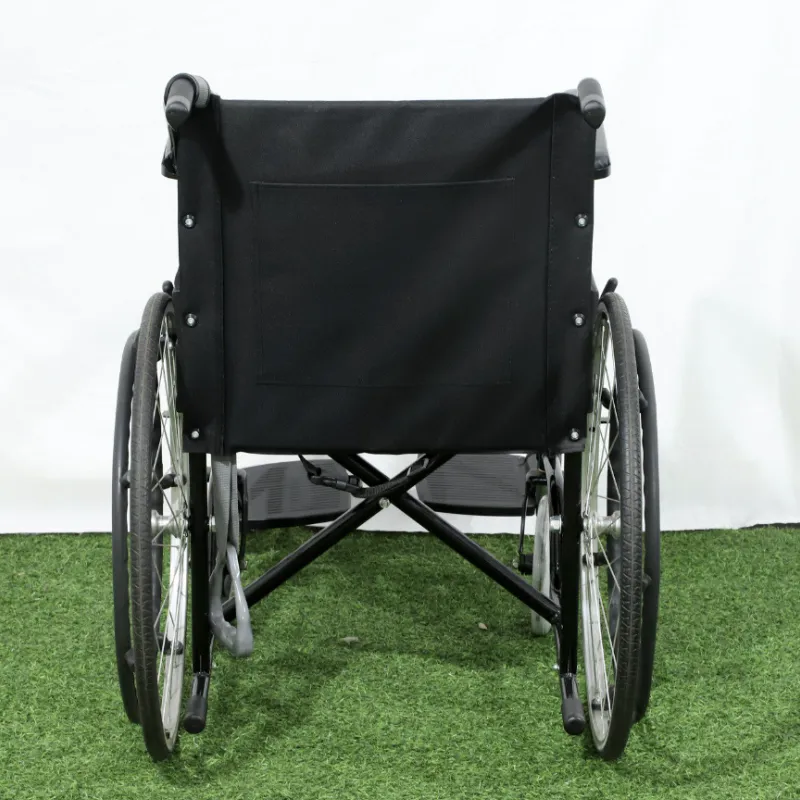

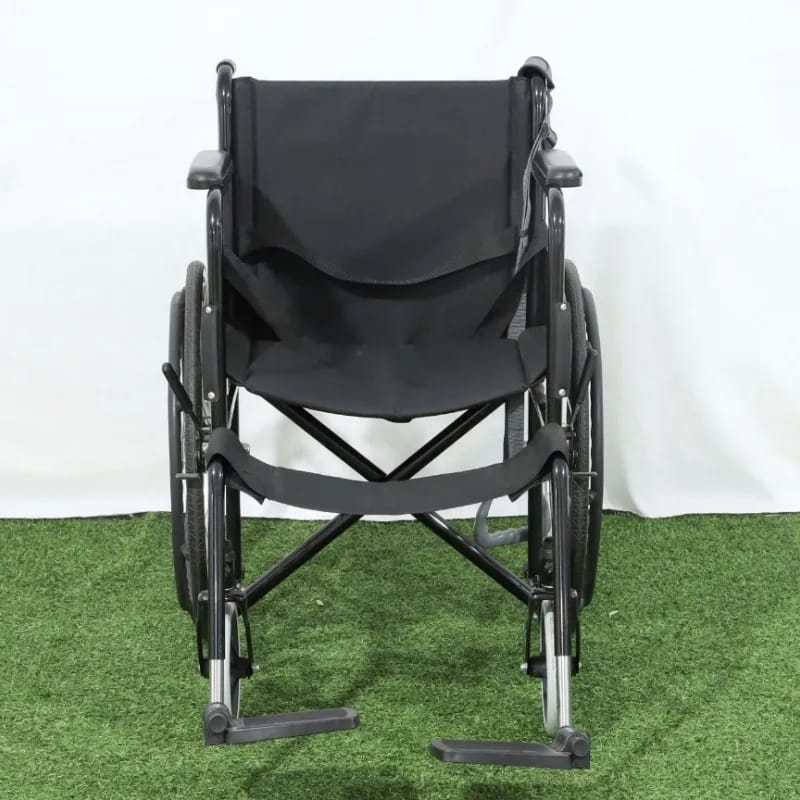

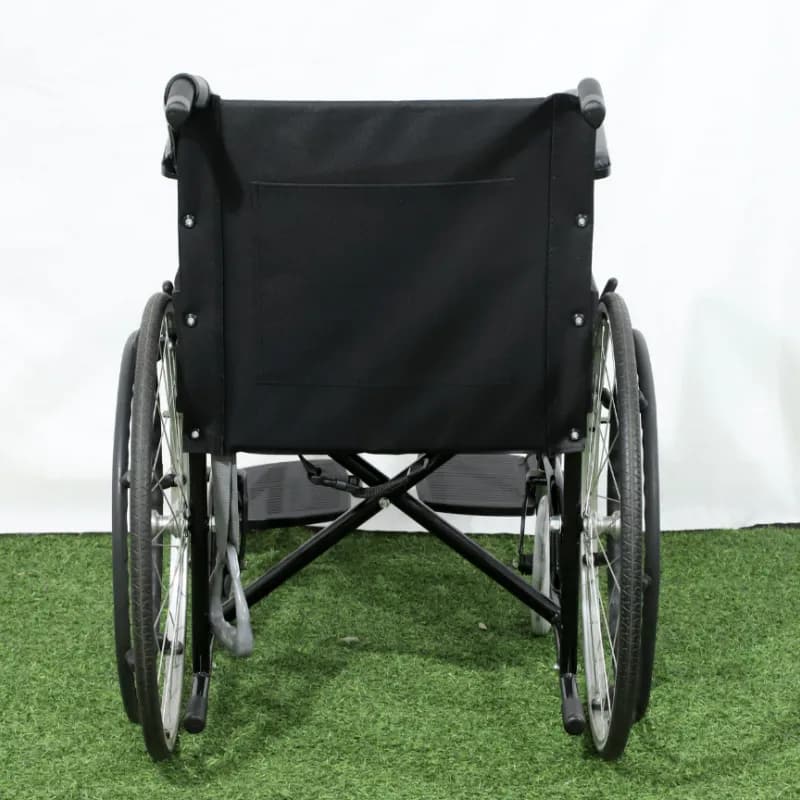

Manual Wheelchair | Foldable and Portable Manual Wheelchair –YY-951B-56
YY-951B-56 Manual Wheelchair is a durable, lightweight, foldable and easy to operate use for hospital beds, nursing homes, and patient care environments. The brake mechanism utilizes a toggle-type brake mechanism, it provides reliable functionality and user comfort. Custom sizes, colors, and OEM branding are available for bulk orders.
Product Specifications
| Parameter | Details |
| Model No. | YY-951B-56 |
| Material | Made of 400D Oxford fabric, featuring a built-in 600D canvas interlayer (waterproof, easy to clean, soft, and smooth) |
| Frame Material | high-strength A3 steel |
| Total Length | 109cm |
| Total Width | 65cm |
| Total Height | 86cm |
| Seat Width | 46cm |
| Seat Depth | 42cm |
| Seat Height from Ground | 50cm |
| Load Capacity | 125 KG |
| Fame Material/Tube Diameter*Thickness | Q195/22*1.2mm |
| Color Options | Black / Grey (OEM available) |
| MOQ | 50 pcs |
| Packaging | 1 unit/ctn, foam + export-grade carton |
| Net Weight | 19 KG per unit |
| Gross Weight | 20 KG per unit |
| Lead Time | 15–20 working days |
| Warranty | 1 year for mechanism and structure |
Selection and OEM Inquiry
The specification table lists a 46 cm seat width, 42 cm seat depth and 50 cm seat height.
For YY-951B-56 manual wheelchair with handbrake, provide the following information so the offered configuration can be checked against your equipment and order:
- Required handbrake arrangement and the rear-wheel and front-wheel configuration.
- User seating requirements, doorway clearance and folded transport dimensions.
- Confirmed frame material and tube specification, plus armrest and footrest configuration.
Any requested dimensional, material, finish, color or packaging changes must be confirmed against the approved drawing and quotation before production.
Application and Compatibility
For manual wheelchair procurement and replacement planning in care and rehabilitation settings. Selection depends on the user's seating requirements, access routes and the confirmed chair configuration.
Factory and Certification Documents
Certification documents are available upon request. Request current copies and confirm the document holder, scope and applicability to the product and destination market.
Ordering Questions
Which seating and wheel configuration should I choose?
The specification table lists a 46 cm seat width, 42 cm seat depth and 50 cm seat height. Confirm the seat dimensions, brake arrangement, wheels, armrests and footrests for the intended user.
What should I check for access and handling?
Check doorway and route clearances and request the folded dimensions and handling instructions for the quoted configuration.
What MOQ and production schedule apply?
Refer to the MOQ and Lead Time entries in this product's specification table. Confirm the final quantity, any requested changes and the production schedule in the quotation for your order.
Can a sample or drawing review be arranged?
Ask whether a sample or drawing review is available for the selected configuration. Confirm the scope, cost, freight and approval process with sales before proceeding.
What should accompany a quotation request?
Include the model, selected options, drawing or mating dimensions, required quantity, destination and any documentation or packaging requirements. Identify which listed accessories you need included.
Related Products and Inquiry
Compare models in Manual Wheelchair. Email [email protected] with the technical information above to request a quotation.
