Ordinary straight tube aluminum alloy guardrail
OEM Hospital Furniture Medical Aluminum Alloy Accessories 2-10 Columns Hospital Bed Side Railing
This hospital bedside guardrail is suitable for medical beds, hospital beds, children’s beds, ordinary beds, steel beds, etc., easy to install, durable, Intelligent design, material: high-quality aluminum alloy profile,
Surface: imported Great Wall Aksu antibacterial powder spraying technology, antibacterial, anti-corrosion, bright color, fixed plate 2.5mm cold-rolled steel sheet ,surface electrostatic spraying.
The connecting part of the guardrail is made of metal and nylon die-casting, which has high strength, no loosening and is durable.

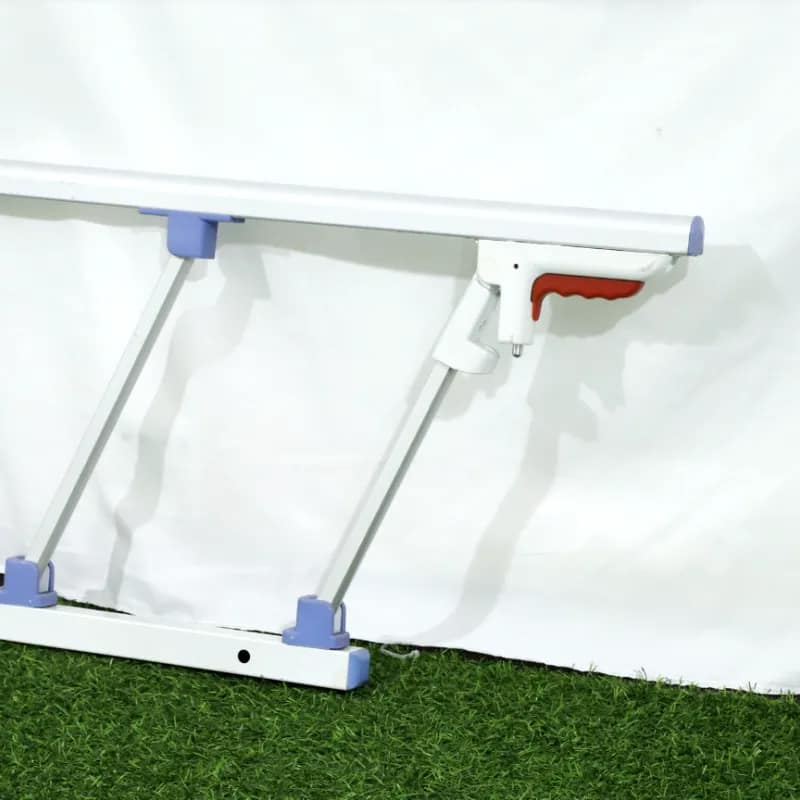

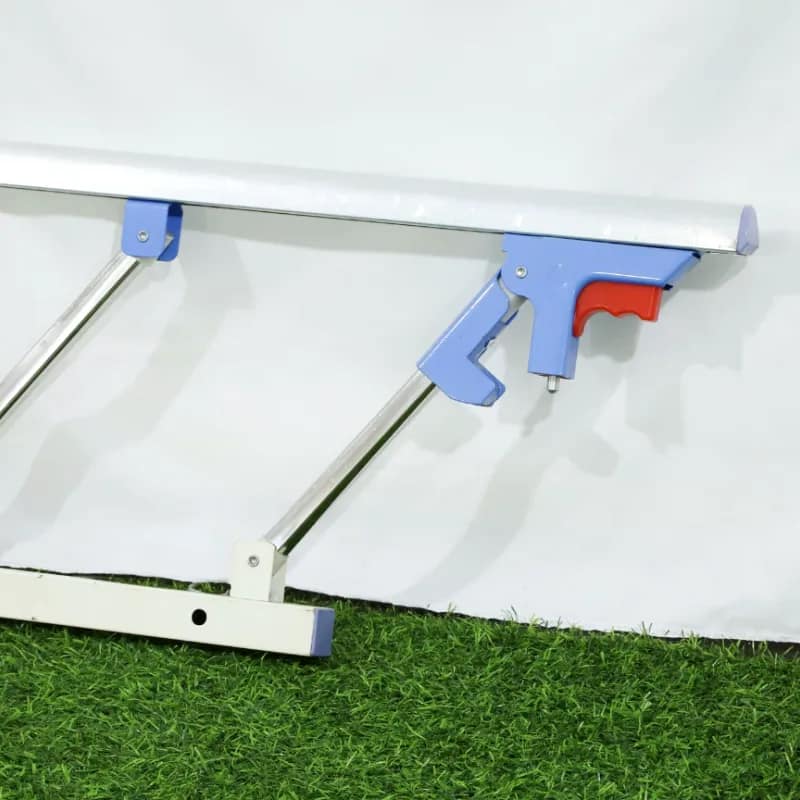

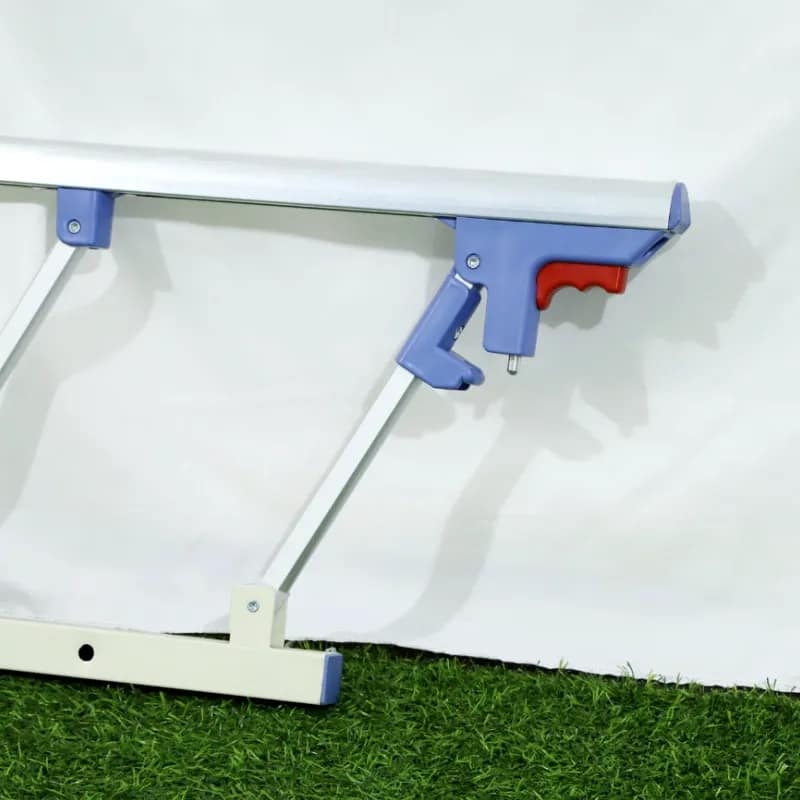

Metal handle, equipped with automatic locking device button, easy to operate, stable and reliable, sturdy and durable.The number of steps, size, and color can be customized.

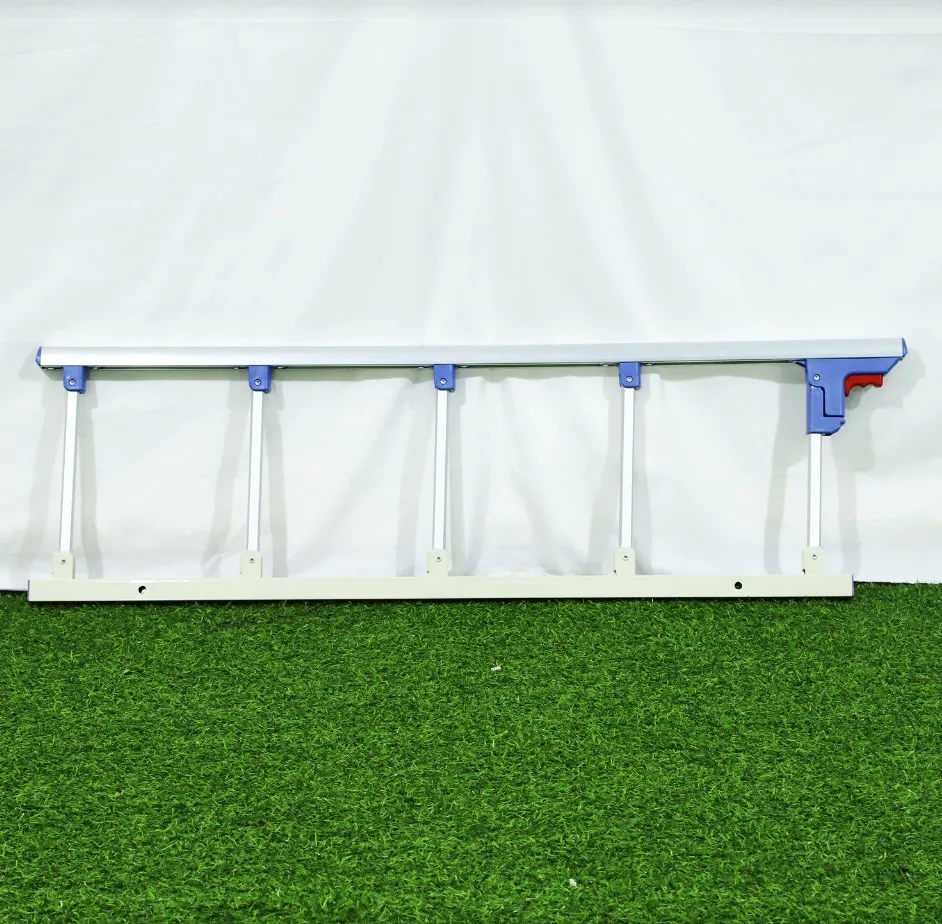

Hospital Bed Guardrail | Ordinary straight tube aluminum alloy guardrail –YY-OR01
YY-OR01 Ordinary straight tube aluminum alloy guardrail is suitable for medical beds, hospital beds, children’s beds, ordinary beds, steel beds, etc., easy to install, durable, Intelligent design. Metal handle, equipped with automatic locking device button, easy to operate, stable and reliable, sturdy and durable. Custom sizes, colors, and OEM branding are available for bulk orders.
Product Specifications
| Parameter | Details |
| Model No. | YY-OR01 |
| Material | Aluminum Alloy/Stainless steel & Iron |

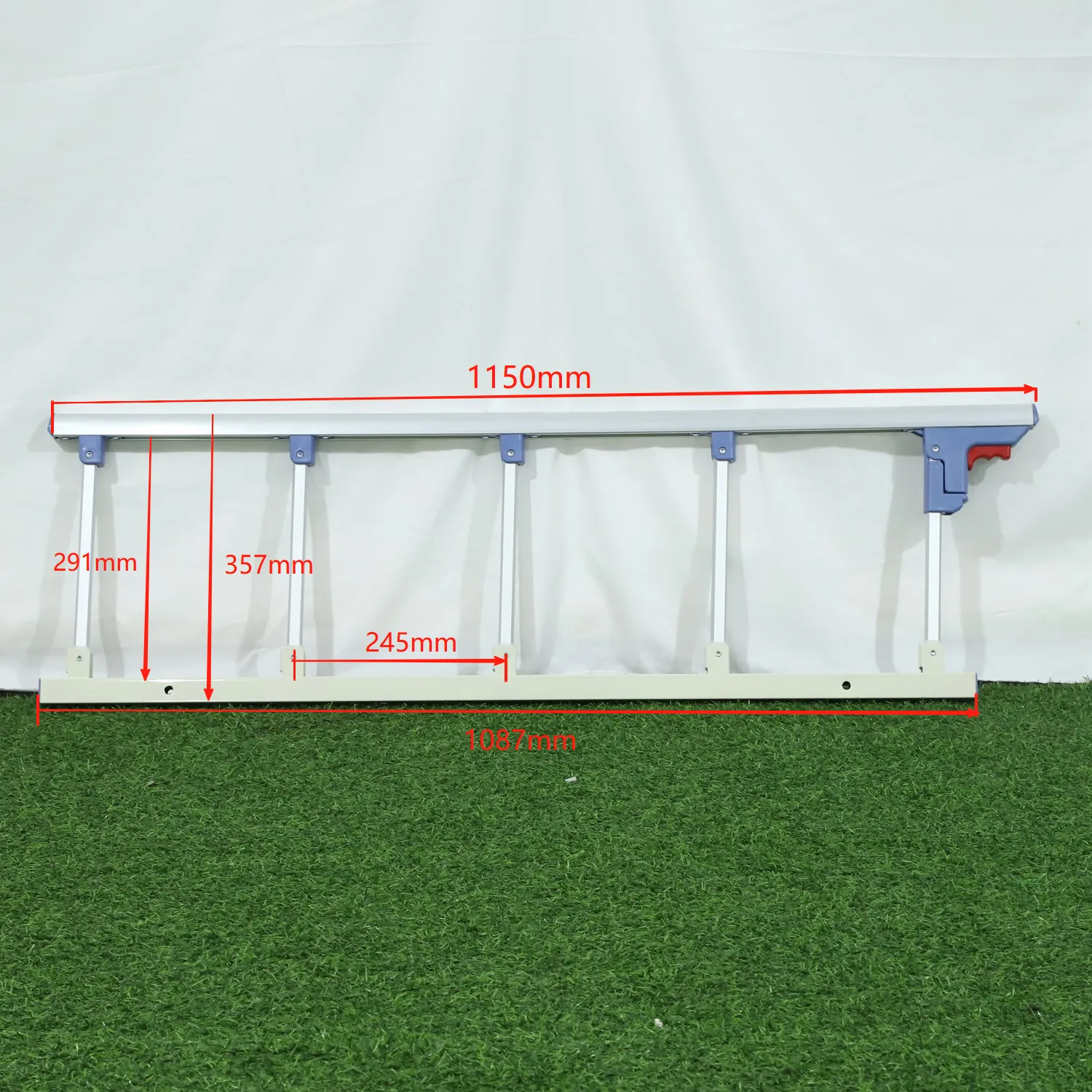

| Size | 6-bars L1150mm/1087 * H357mm (Customizable) |
| Color Options | White & Blue (OEM available) |
| Unit | 1 set=2 pcs |
| MOQ | 50 pcs |
| Packaging | 1 unit/ctn, foam + export-grade carton |
| Gross Weight | 4 KG per unit |
| Lead Time | 15–20 working days |
| Warranty | 1 year for mechanism and structure |
Selection and OEM Inquiry
The table lists six-bar length options and aluminum-alloy / stainless-steel and iron materials.
For YY-OR01 straight-tube guardrail, provide the following information so the offered configuration can be checked against your equipment and order:
- Required length version and confirmed tube material.
- Bed-frame bracket dimensions and fixing centres.
- Locking arrangement, movement clearance and quantity of rail pairs.
Any requested dimensional, material, finish, color or packaging changes must be confirmed against the approved drawing and quotation before production.
Application and Compatibility
For a compatible hospital, nursing or stretcher bed as identified for this model. Rail fit must be assessed with the bed frame, mattress, brackets and locking arrangement together.
Factory and Certification Documents
Certification documents are available upon request. Request current copies and confirm the document holder, scope and applicability to the product and destination market.
Ordering Questions
What must match between the rail, bed and mattress?
The table lists six-bar length options and aluminum-alloy / stainless-steel and iron materials. Review the rail with the actual bed frame and mattress, including the required coverage and the bed manufacturer's compatibility requirements.
How do I check brackets and locking clearance?
Send mounting-bracket drawings, fixing centres, locking details and the space available as the rail opens, folds or lowers.
What MOQ and production schedule apply?
Refer to the MOQ and Lead Time entries in this product's specification table. Confirm the final quantity, any requested changes and the production schedule in the quotation for your order.
Can a sample or drawing review be arranged?
Ask whether a sample or drawing review is available for the selected configuration. Confirm the scope, cost, freight and approval process with sales before proceeding.
What should accompany a quotation request?
Include the model, selected options, drawing or mating dimensions, required quantity, destination and any documentation or packaging requirements. Identify which listed accessories you need included.
Related Products and Inquiry
Compare models in Guardrail. Email [email protected] with the technical information above to request a quotation.
