Emergency Transfer Stretcher and accessories

Medical Adjustable Medical Equipment Patient Stretcher Trolley Hospital Patient Bed Emergency Rescue Bed Transfer Bed

1. The bed frame is made of 25×50×1.5mm rectangular steel tubing.
2. The bed surface is a two-piece, two-fold design, made entirely of engineering plastic, blow-molded in one piece.
3. The crank handle is made of chrome-plated iron, foldable, high-strength, flexible, and convenient, with a steel universal joint.
4. The screw has a two-way positioning protection function; it adopts a “two-way positioning without limit protection” screw system.
5. There is one IV holder socket at each end of the bed, with a 20mm diameter hole, made of stamped metal.
6. Stainless steel double-section telescopic four-claw IV holder, 19mm diameter, sturdy and durable.
7. The bed surface is equipped with a patient restraint strap for the specified transfer procedure; the restraint strap is removable and washable.
8. Guardrails: Two-piece retractable plastic guardrails, made of PP engineering plastic. Confirm compatibility with the bed, mattress and operating procedure;

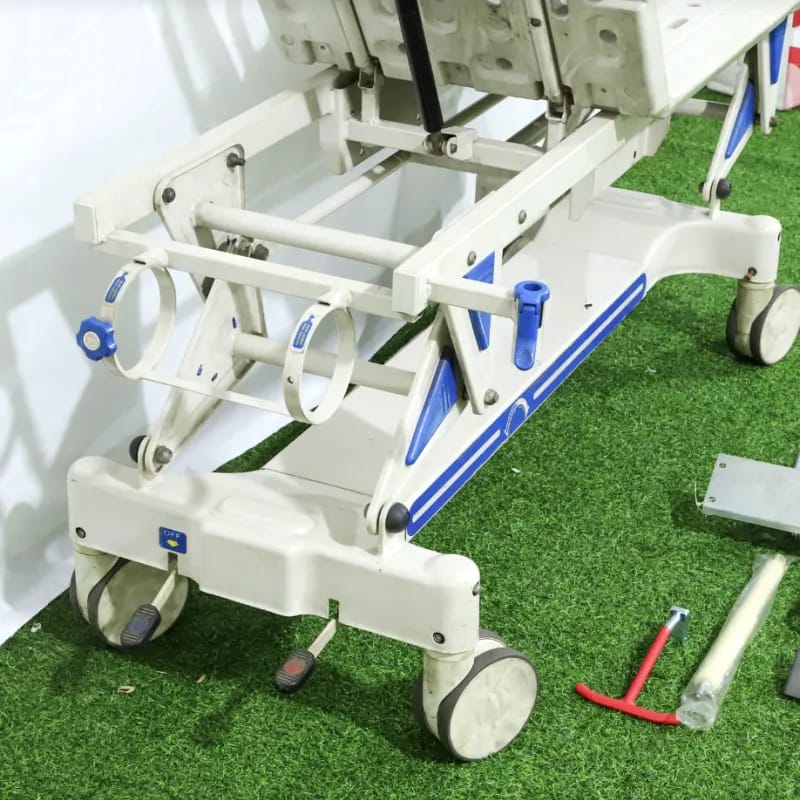

9. The entire bed is equipped with an oxygen cylinder storage base, and the metal surface is powder-coated with antibacterial and environmentally friendly powder.
10. Lifting system: Employs a single-rocker lifting system, with the operating load and adjustment requirements to be confirmed.
11. One-piece injection-molded ABS engineering plastic base cover.
12. Casters are from a listed company brand, 125mm diameter casters, silent, wear-resistant, with built-in fully enclosed self-lubricating bearings, waterproof, and designed to prevent debris entanglement;
13. Braking system: One-foot central control brake, one-foot braking with four-wheel positioning.
14. Equipped with a 3cm thick full-sponge mattress, covered with high-grade waterproof fabric, soft and easy to clean.
15. Employs a shock-absorbing fifth wheel, using shock-absorbing 3.5*31.5*105 compression springs.
16. 16. Flexible transport, reducing the workload of medical staff.

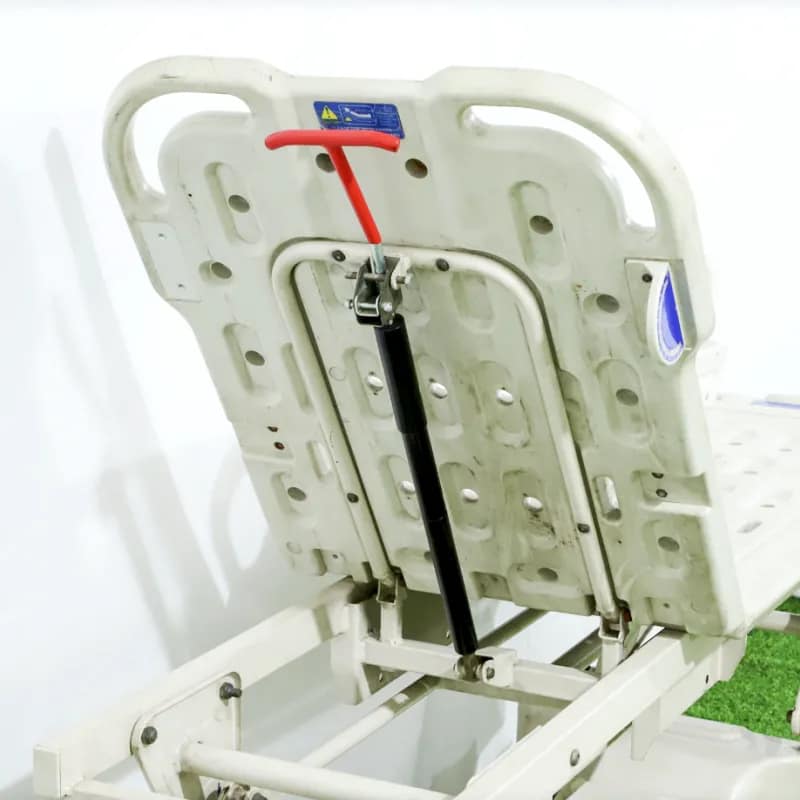

17. 17. Employs a gas spring backrest lifting system.
18. 18. Backrest angle 0-75 degrees, overall height adjustment 0-300mm
19. 19. Bed frame can withstand a load of 250kg; bed frame weight ≥ 80KG
20. 20. One-foot central braking system

Product Specifications

Product Configuration List

Selection and OEM Inquiry

The record includes a height-adjustable trolley and a separate product configuration list.

For Patient stretcher trolley and accessories, provide the following information so the offered configuration can be checked against your equipment and order:

• Required trolley dimensions, height range and route clearances.
• Guardrail, IV pole, restraints, oxygen-cylinder rack, mattress and caster configuration.
• A confirmed bill of materials identifying which listed accessories are included in the quotation.

Any requested dimensional, material, finish, color or packaging changes must be confirmed against the approved drawing and quotation before production.

Application and Compatibility

For patient-stretcher trolley procurement and accessory replacement where overall dimensions, height adjustment and the supplied configuration suit the intended route and care procedure.

Factory and Certification Documents

Certification documents are available upon request. Request current copies and confirm the document holder, scope and applicability to the product and destination market.

Ordering Questions

Which trolley and accessory configuration should I order?

The record includes a height-adjustable trolley and a separate product configuration list. Identify the required guardrails, IV pole, mattress, restraints, oxygen-cylinder rack and caster configuration in a confirmed bill of materials.

What route and height clearances should I check?

Compare the trolley dimensions and height range with doorways, transfer surfaces and the intended movement route.

What MOQ and production schedule apply?

Refer to the MOQ and Lead Time entries in this product's specification table. Confirm the final quantity, any requested changes and the production schedule in the quotation for your order.

Can a sample or drawing review be arranged?

Ask whether a sample or drawing review is available for the selected configuration. Confirm the scope, cost, freight and approval process with sales before proceeding.

What should accompany a quotation request?

Include the model, selected options, drawing or mating dimensions, required quantity, destination and any documentation or packaging requirements. Identify which listed accessories you need included.
