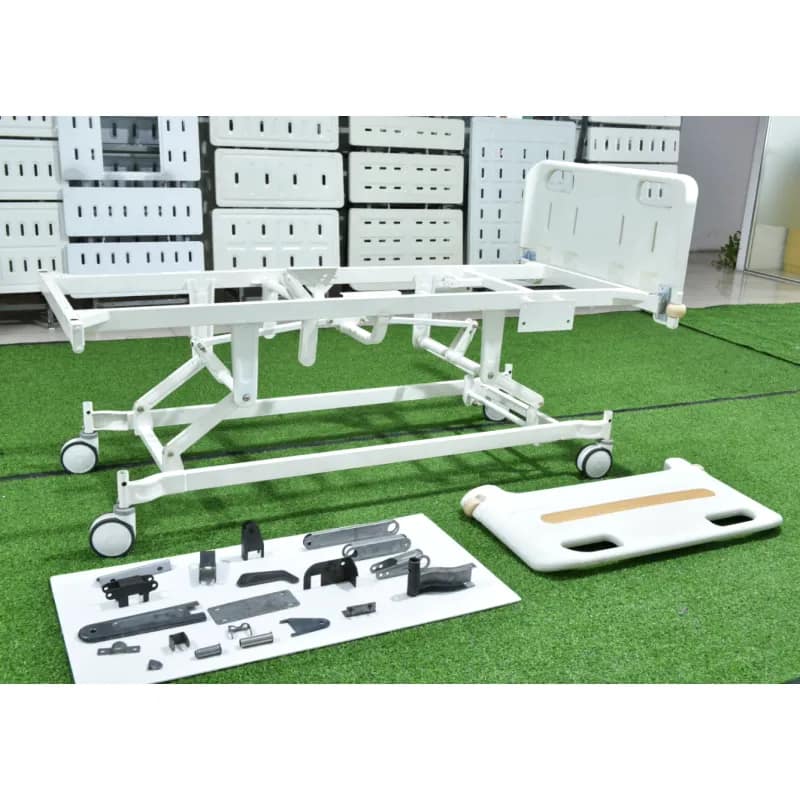

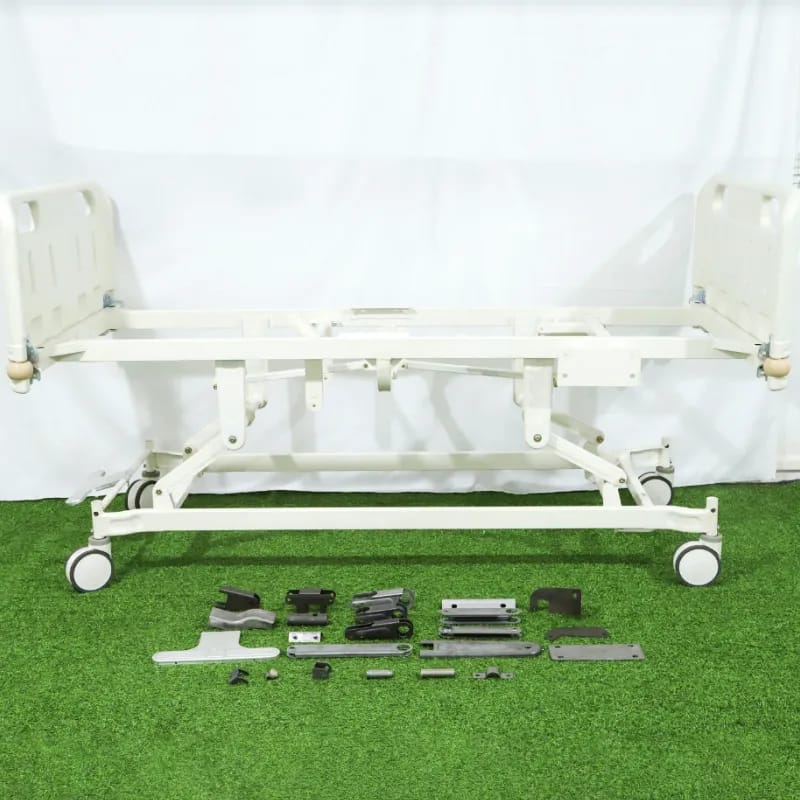

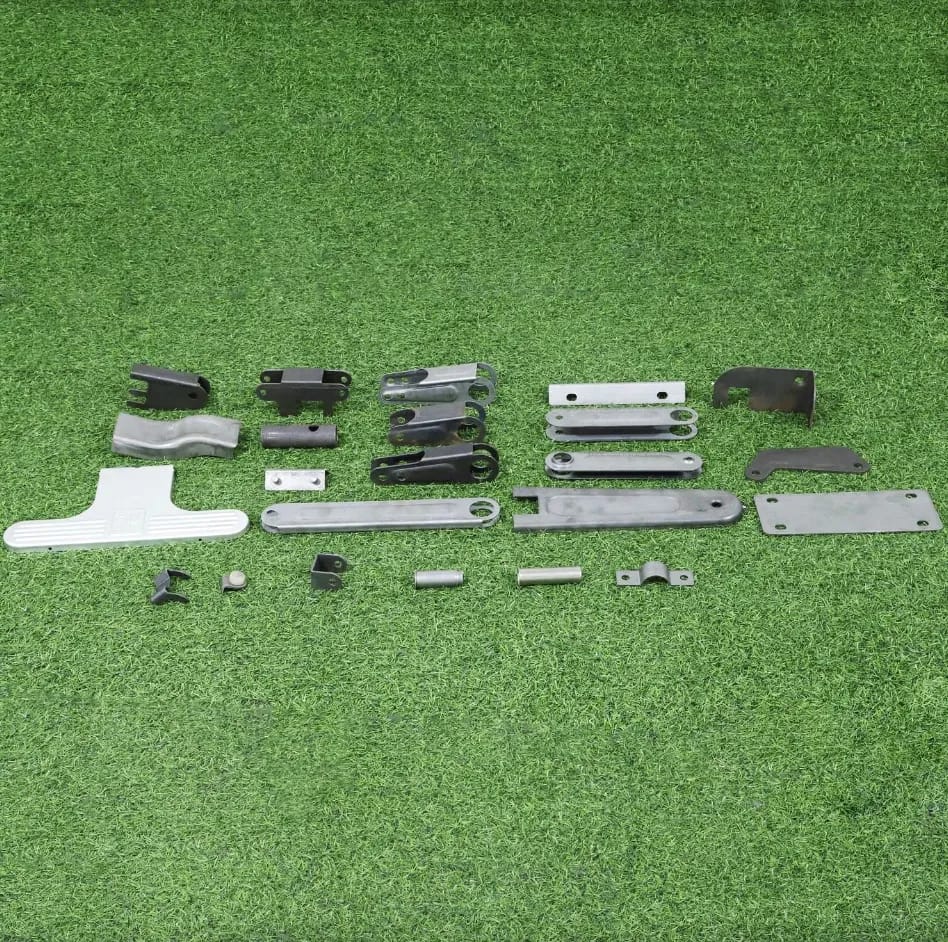

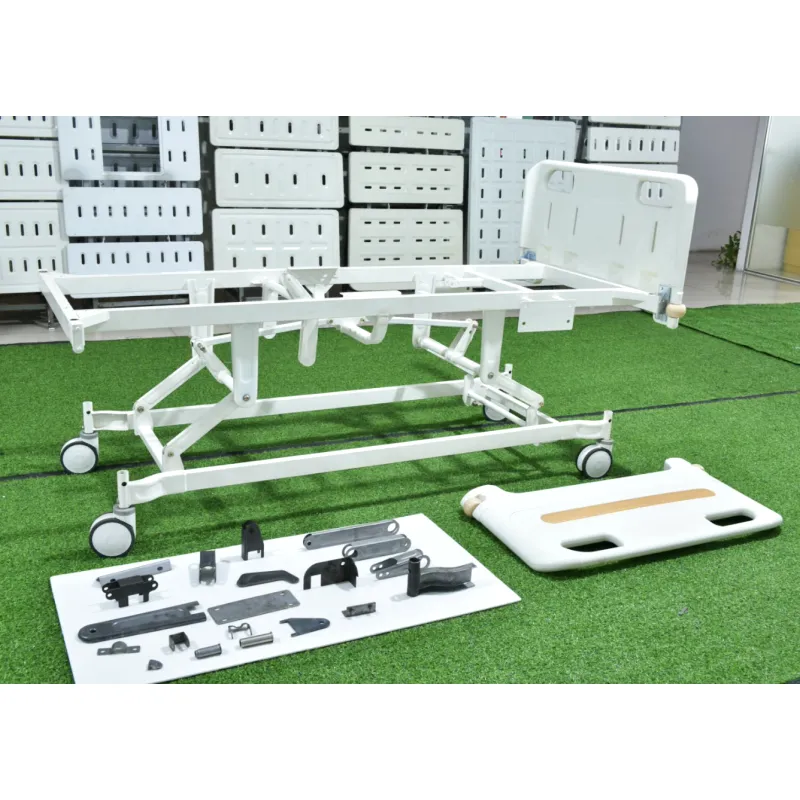

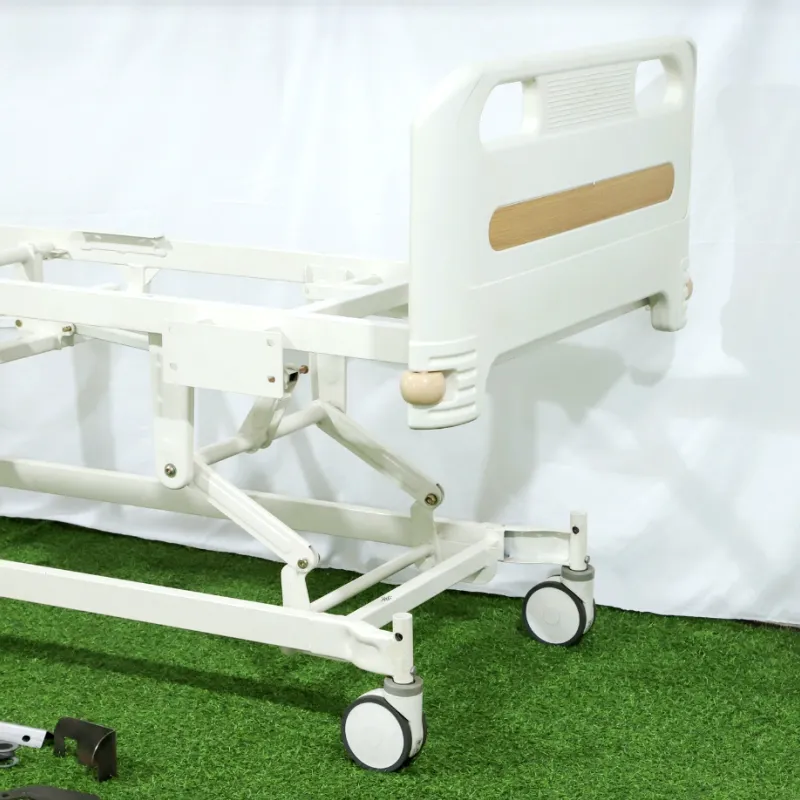

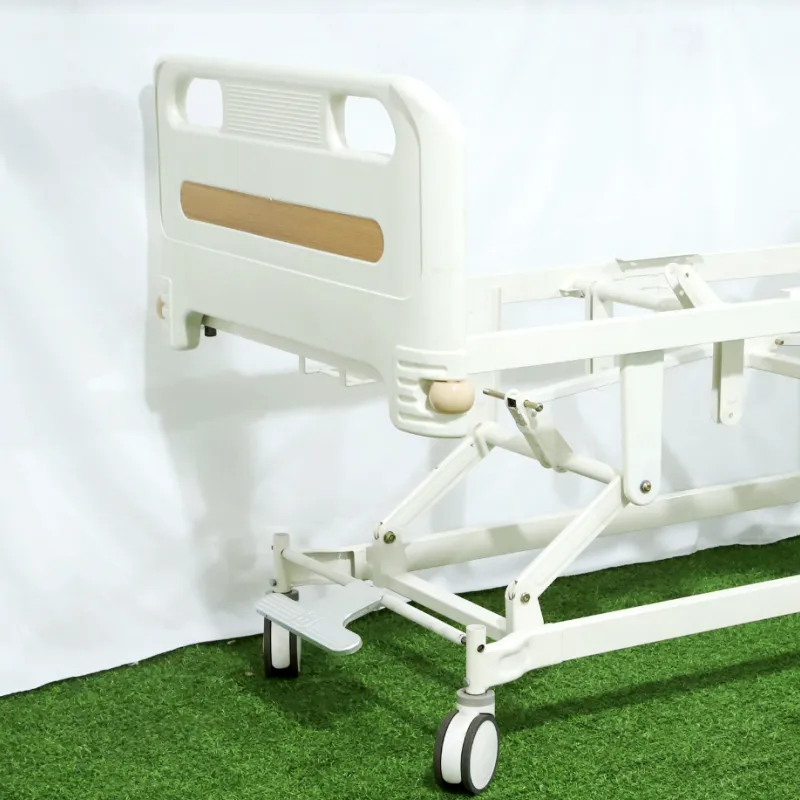

Electric five function hospital bed and metal parts
Electric 5 Function Adjustable Height Assembling Hospital Medical ICU Bed
Electric five-function medical bed: 5 motors independently driven, backrest, legboard, overall lifting, and forward/backward tilt can be completed with one button, load capacity 250 kg, noise ≤45 dB, double protection of battery and manual operation in case of power failure, the first choice for high-end ICU/VIP wards.
Electric 5 Function Adjustable Height Assembling Hospital Medical ICU Bed
Electric five-function medical bed: 5 motors independently driven, backrest, legboard, overall lifting, and forward/backward tilt can be completed with one button, load capacity 250 kg, noise ≤45 dB, double protection of battery and manual operation in case of power failure, the first choice for high-end ICU/VIP wards.
Product Specifications
| Parameter | Details |
| Product Name | Electric 5 Function Hospital Bed |
| Material | 1. Bed top is made of Liuzhou steel. 2. Bed frame is made of iron. 3. Headboard and footboard are made of ABS/PP material. 4. Bed side rails are made of aluminum alloy and iron. |
| Dimension | L2170*W960*H460MM |
| Height Adjusted | 460-720MM(±10MM) |
| Back Rest Tilting | 75°(±5°) |
| Knee Board Tilting | 40°(±5°) |
| Reverse and Trendelenburg | ≧12° |
| Packing Size | L2060*W930*H460MM |
| Load Capacity | 250 KG |
| Color Options | White |
| MOQ | 50 pcs |
| Packaging | Wooden Box |
| Gross Weight | >=80 KG per unit |
| Lead Time | 40-45working days |
| Warranty | 1 year for mechanism and structure |
Product Configuration List
| Product Name | Part Name | Quantity | Remark |
|
Manual 2 Cranks Hospital Bed | Motor | 1 SETS | |
| Casters | 4 PCS | ||
| Head&foot board | 1 PAIR | ||
| Aluminum alloy bedside rail | 1 PAIR | ||
| Urine Hooks | 4 PCS | ||
| Iv Pole | 1 SET |
Selection and OEM Inquiry
The record lists overall dimensions, height adjustment and back, knee and tilt information.
For Electric five-function hospital bed and metal parts, provide the following information so the offered configuration can be checked against your equipment and order:
- Required functions, actuator and controller arrangement and electrical supply.
- Mattress platform and frame dimensions, rail interfaces and accessory list.
- Whether the quotation covers a complete powered bed or selected parts, with a confirmed bill of materials.
Any requested dimensional, material, finish, color or packaging changes must be confirmed against the approved drawing and quotation before production.
Application and Compatibility
For electric hospital-bed procurement or assembly projects after the powered functions, electrical configuration and accessory interfaces have been confirmed.
Factory and Certification Documents
Certification documents are available upon request. Request current copies and confirm the document holder, scope and applicability to the product and destination market.
Ordering Questions
Which powered functions and electrical configuration are required?
The record lists overall dimensions, height adjustment and back, knee and tilt information. Confirm the actual function list, actuator and controller arrangement and electrical supply for the quoted version.
What must be included in the bed or parts quotation?
Agree on a bill of materials for the complete bed or selected components, including frame dimensions and the interfaces of rails and accessories.
What MOQ and production schedule apply?
Refer to the MOQ and Lead Time entries in this product's specification table. Confirm the final quantity, any requested changes and the production schedule in the quotation for your order.
Can a sample or drawing review be arranged?
Ask whether a sample or drawing review is available for the selected configuration. Confirm the scope, cost, freight and approval process with sales before proceeding.
What should accompany a quotation request?
Include the model, selected options, drawing or mating dimensions, required quantity, destination and any documentation or packaging requirements. Identify which listed accessories you need included.
Related Products and Inquiry
Compare models in Electric Hospital Bed. Email [email protected] with the technical information above to request a quotation.
