840mm width 4 sections stamped bed panel
840mm Width 4 Sections Stamped Willow Steel Hospital Bed Panel Bed Accessories
Stamped Bed panel for hospital bed.
Medical bed bearing head elevation / knee elevation / bed height adjustment to carry weight.

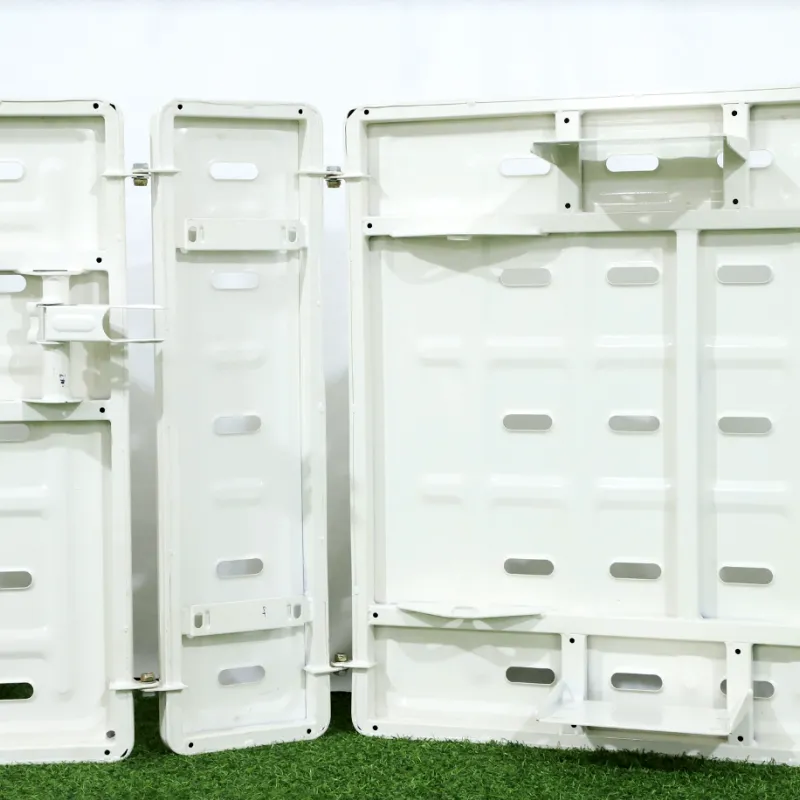

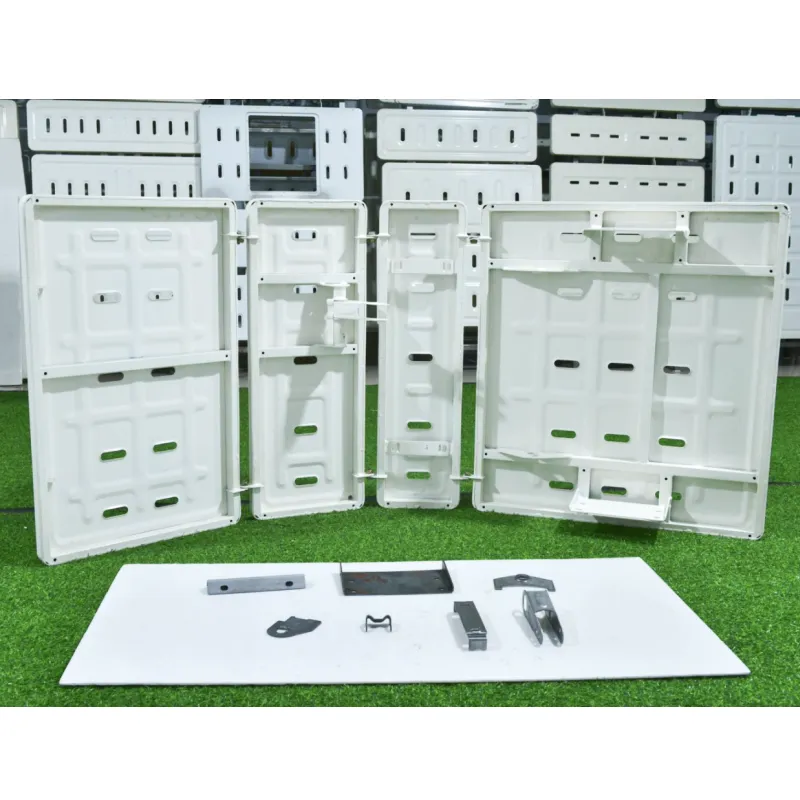

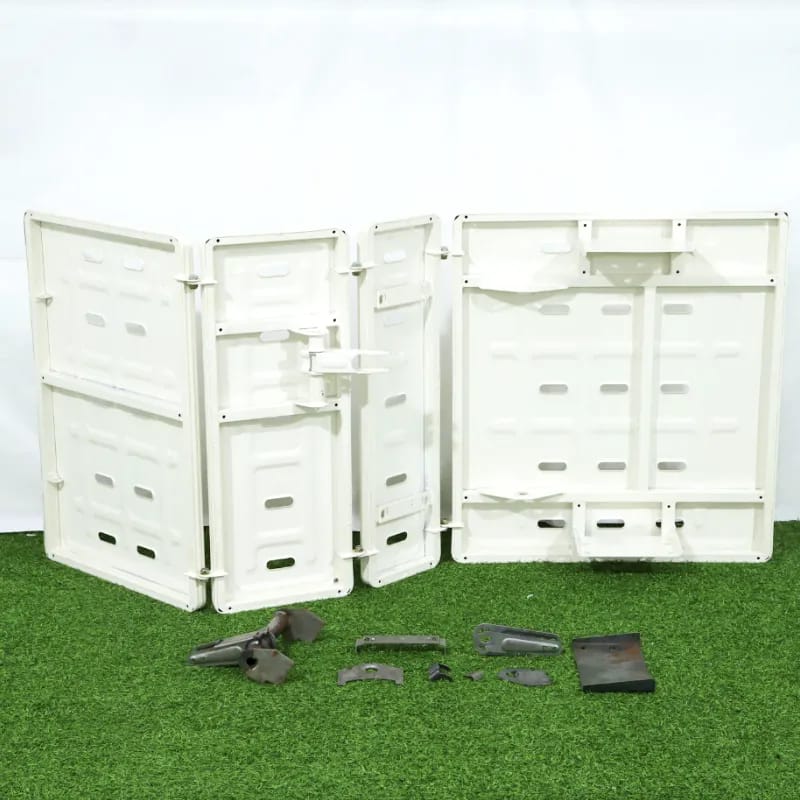

The YY-5BP01 four-section stamped steel bed panel is designed for hospital bed frames requiring adjustable back and knee sections. Its 840 mm width suits compatible medical bed assemblies and provides a practical platform for OEM hospital bed production.
Product Specifications
- Model: YY-5BP01
- Panel sections: 840 × 750 × 32 mm; 840 × 230 × 32 mm; 840 × 320 × 32 mm; 840 × 540 × 32 mm
- Thickness: 0.8 mm
- Material: Steel
- Application: Manual and electric hospital bed frames
Custom dimensions, hole positions, surface finishes and OEM packaging are available. Send your technical drawing or bed-frame dimensions for compatibility confirmation.
Selection and OEM Inquiry
The listed sheet thickness is 0.8 mm; section dimensions are retained in Product Specifications.
For YY-5BP01 840 mm four-section stamped bed panel, provide the following information so the offered configuration can be checked against your equipment and order:
- Confirm the four section lengths and their positions on the 840 mm wide bed frame.
- Provide hinge centres, fixing holes and linkage attachment-point drawings.
- Specify finish, quantity of sets and whether a trial fit is required before the production order.
Any requested dimensional, material, finish, color or packaging changes must be confirmed against the approved drawing and quotation before production.
Application and Compatibility
For hospital-bed platform fabrication or replacement. Section dimensions, sheet thickness, hinges and linkage attachment points must match the approved frame drawing.
Ordering Questions
How do I select the panel sections and thickness?
The listed sheet thickness is 0.8 mm; section dimensions are retained in Product Specifications. Confirm every section dimension, its position on the bed platform and the selected sheet thickness.
What drawing details are needed for frame compatibility?
Provide hinge centres, fixing holes, linkage attachment points and any welding or surface-finish requirements on the approved frame drawing.
What MOQ and production schedule apply?
MOQ and production lead time are not listed for this model on this page. Include the required quantity and drawing revision in your inquiry and obtain the terms in the quotation before placing an order.
Can a sample or drawing review be arranged?
Ask whether a sample or drawing review is available for the selected configuration. Confirm the scope, cost, freight and approval process with sales before proceeding.
What should accompany a quotation request?

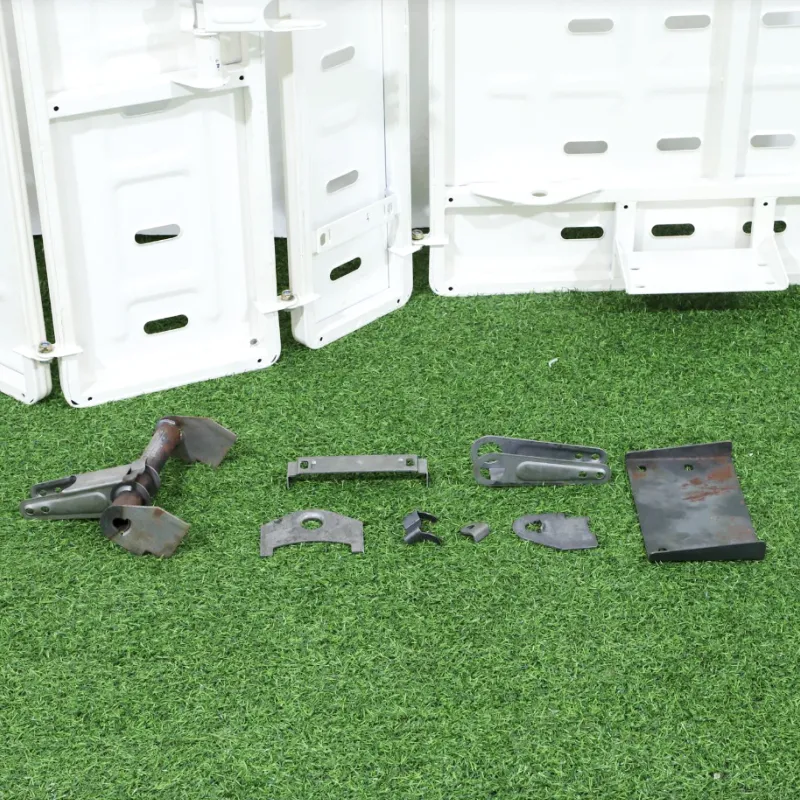

Include the model, selected options, drawing or mating dimensions, required quantity, destination and any documentation or packaging requirements. Identify which listed accessories you need included.
Related Products and Inquiry
Compare models in Stamped Hospital Bed Panels. Email [email protected] with the technical information above to request a quotation.
